Woodworking Tools Mini 8mm Shank Router Bit Spoilboard Surfacing Flycutter2+2 Flute CNC Router Bits For Wood

Sales Models: Wholesale
Min Order:100 PCS
OEM: Support Customised
Size:
Availability:
Quantity:

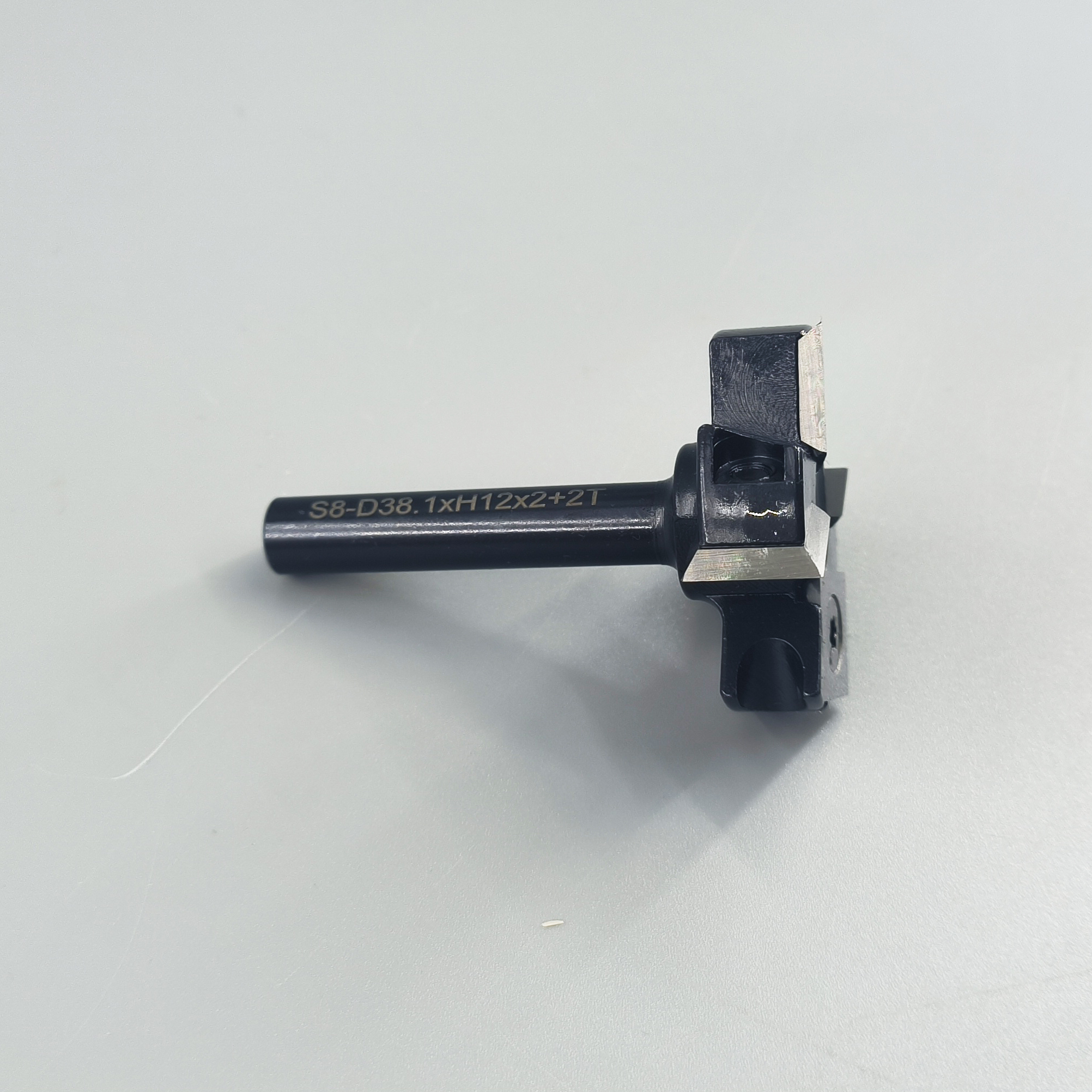

  • 8mm Shank * D38.1 mm * H12 mm

  • XIAPU

    Woodworkers use these surfacing router bits with replaceable carbide inserts for slab flattening, resurfacing spoilboards with CNC, rabbeting and bottom cleaning.

    These cutting edge bits feature unique 2+2 insert knife design that contains two cutting flutes and two up-shear scorers, which provide a smoother finish at the bottom of the cut than traditional two-knife style router bits.

    Insert spoilboard surfacing and rabbeting with scorers features unique 2+2 knife design that contains two cutting flutes and two up-shear scorers, which provide a smoother finish at the bottom of the cut than traditional two-knife style router bits.

    Also known as a Surface Planing, Rabbeting, Flycutter, Fly Cutter, Leveler and Bed Skimming Router Bit.

    If interested in this product or have other customized needs for similar products.

    Please click this link to consult us. We will reply you at the first time we receive it.

    Looking forward to your inquiry.


zhu15

zhu03

zhu04

zhu08

1.Smooth finish cuts and superior wear resistance

2.Long-lasting and durable blade life

3.Highly efficient heat dissipation, fast chip removal

4.Replaceable blades, can reduce costs

5.Wider processing range


Product Name

CNC Spoilboard Surfacing Router Bit - 8mm Shank

Shank Diameter

8mm

Cutter Material

45# Carbon Steel

Number of Wings

4 Wing + 2T

Matching Blade

12*12*1.5 mm Tungsten Carbide Blade

Application

Spoilboard. or waste board leveling,Spoilboard resurfacing,Slab flattening,Cleaning up warped project materials
