Woodworking Router Bits CNC Router Bits For Trimming Machine

Sales Models: Wholesale
Min Order:50 PCS
OEM: Support Customised

Size:
Availability:
Quantity:
  • S12.7mm * D24mm * H30mm x 2T

  • XIAPU

   Flush cut bits use an end bearing to guide the cutting edge and trim the design to the desired design or shape. Manufactured with two chip slots and equipped with a carbide tip, they provide a smooth cut in most materials.

   The cutter is manufactured with a high quality, very sharp and durable carbide tip, suitable for trimming edges while leaving a protruding shape on the workpiece, and its excellent cutting performance ensures smooth and clean results.

   The guide bearing allows for better orientation of the bits with respect to the workpiece and the balanced blade design ensures a stable cutting process, with consistent sharpness and durability, our quality is reliable.

   Suitable for wood, mdf, laminate, plywood, chipboard, particleboard, pressed plywood, acrylic and more.

   Used in CNC and other automatic routers, as well as manual and table routers. Such as wood engraving machine, trimming machine, etc.

   OEM support.

   If you are interested in the product, please click here to contact us. We will reply you as soon as we receive your inquiry.

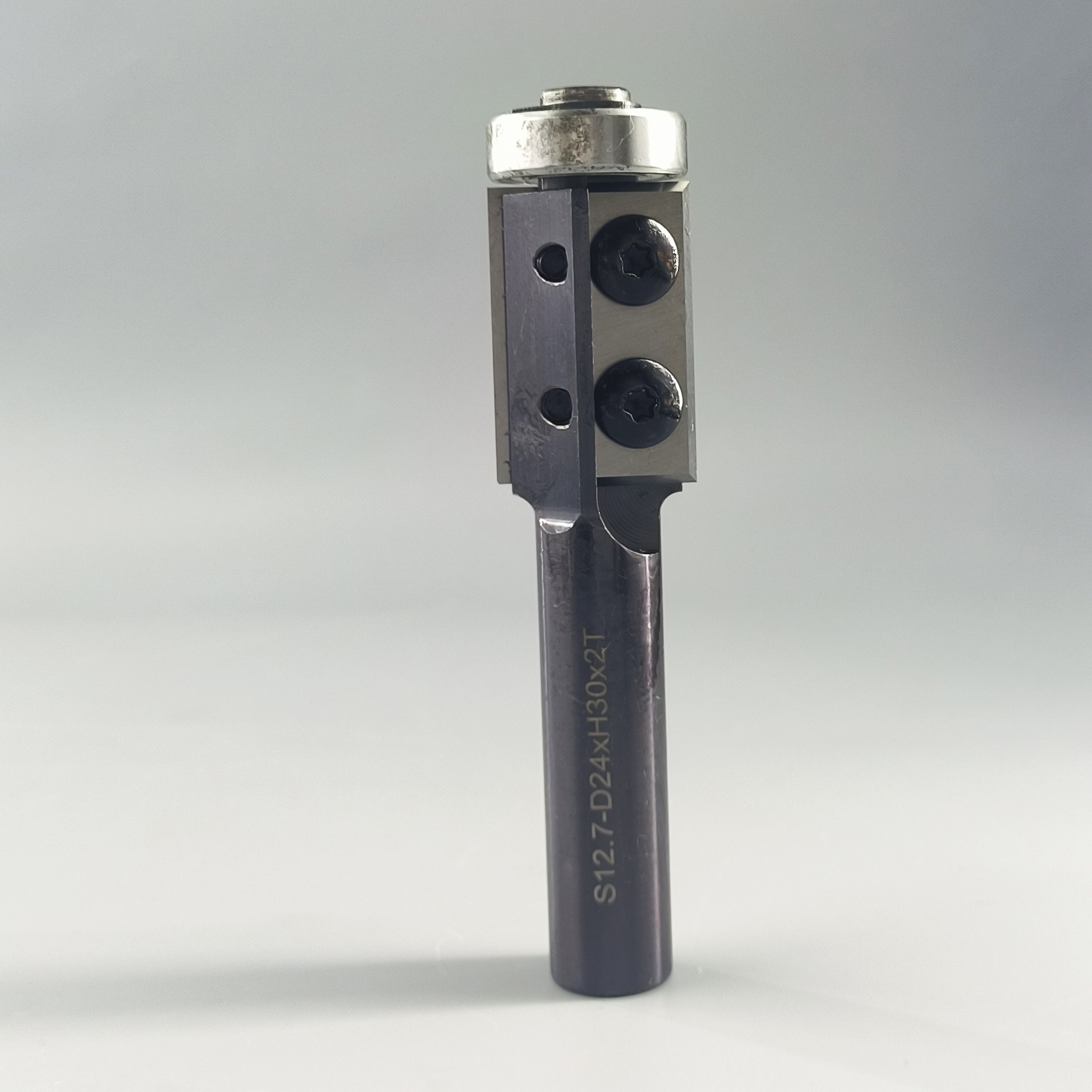

zhu01

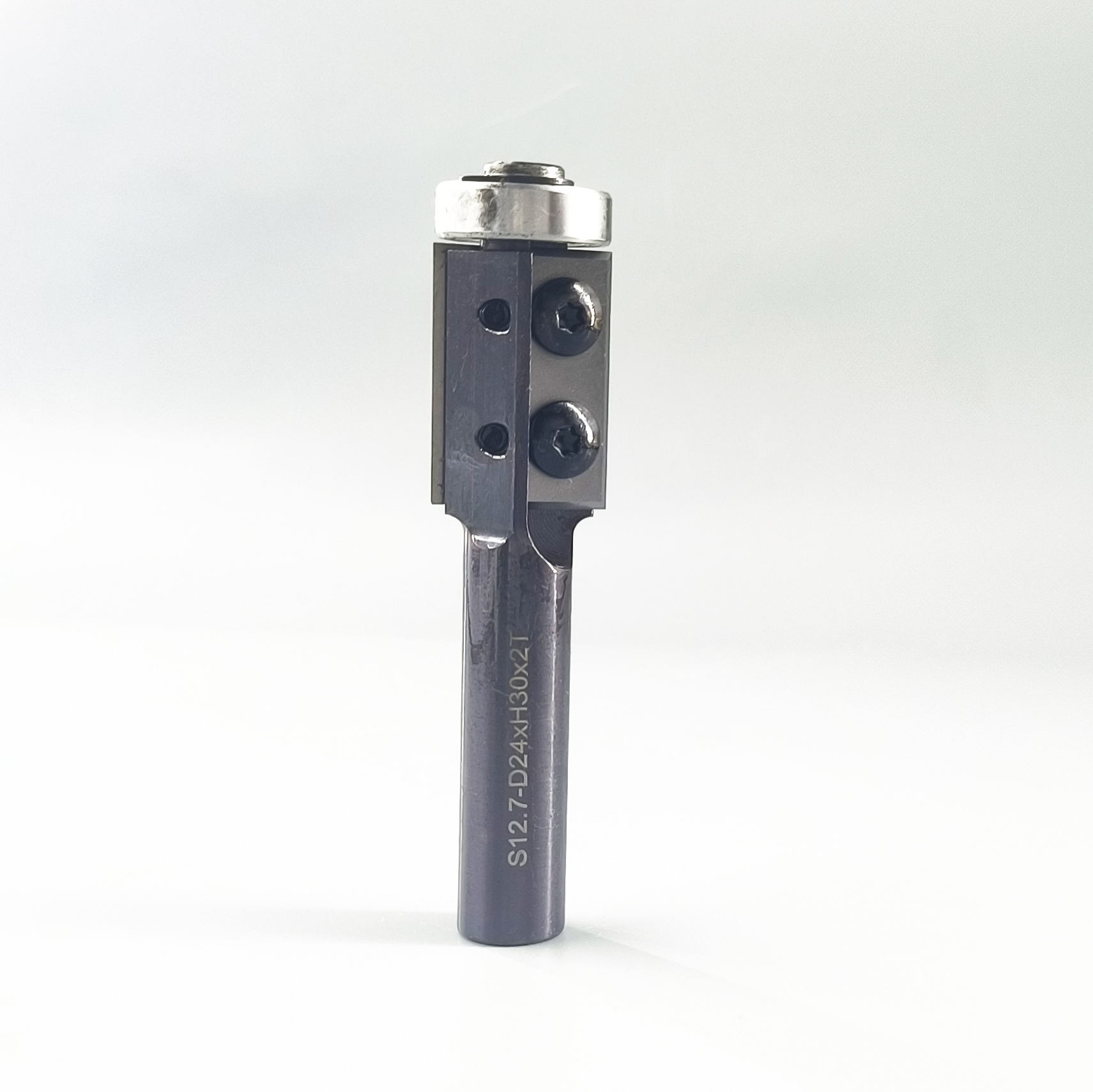

zhu03

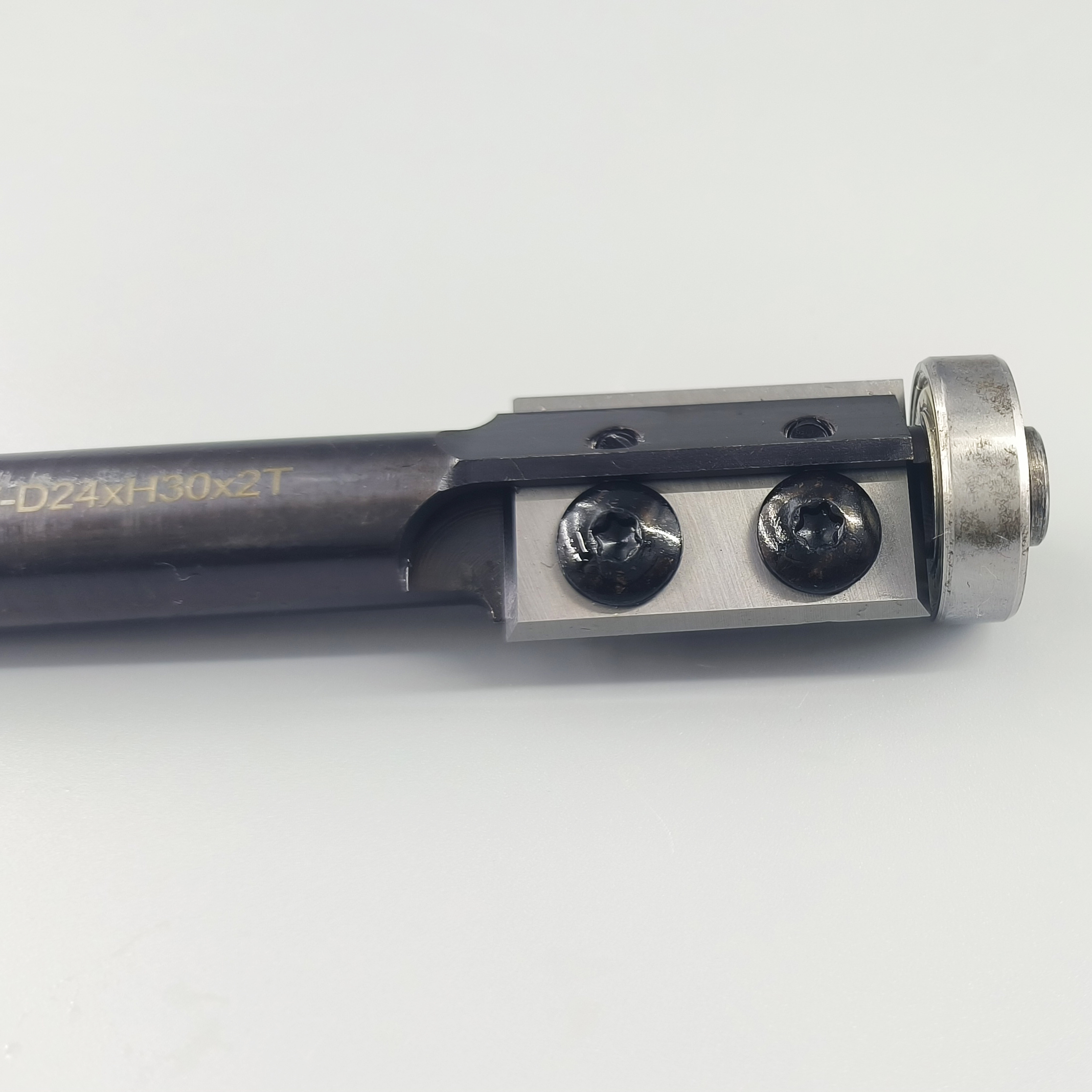

zhu07

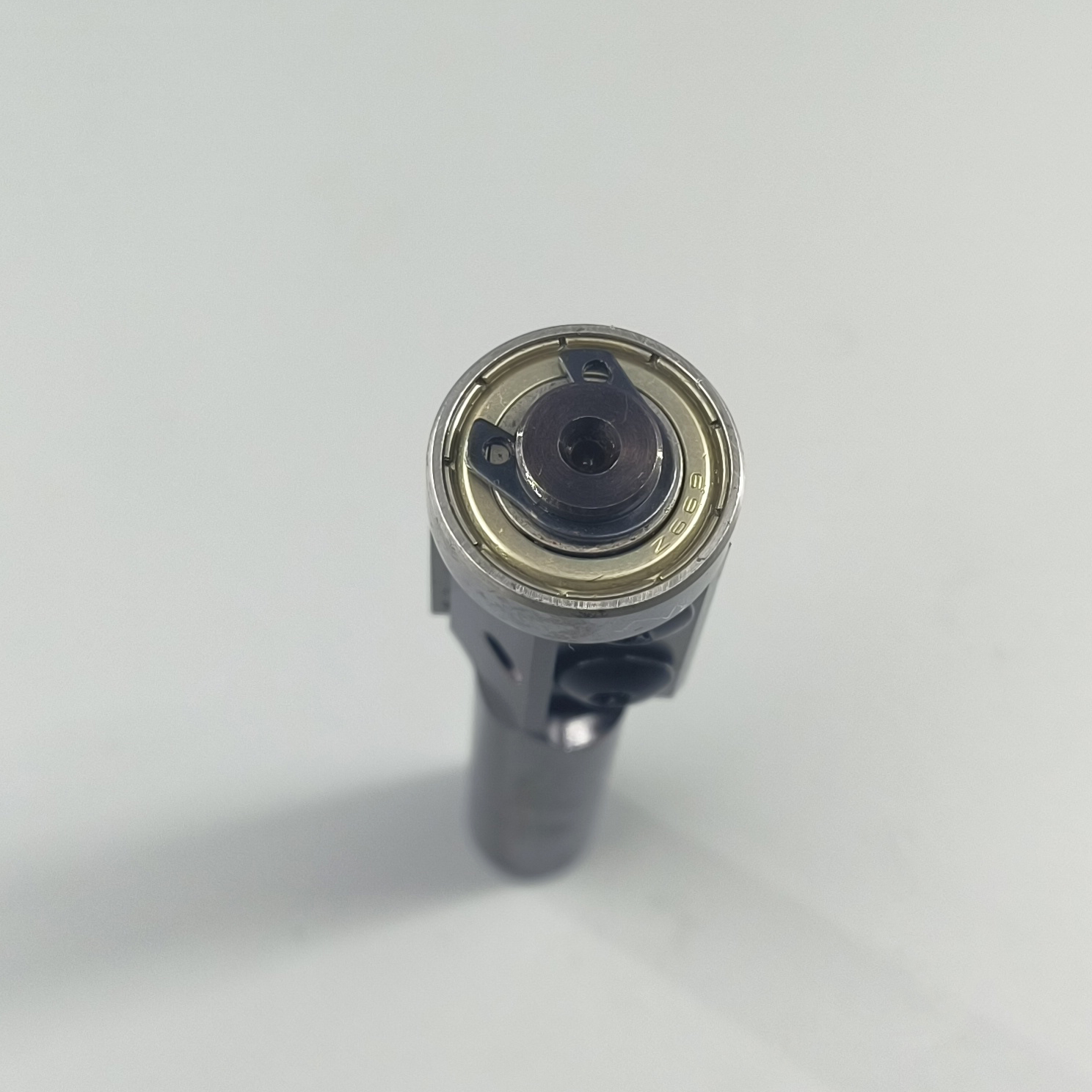

zhu08

  • 2-Flute Design:Efficient chip removal and smoother cutting performance. Right-Hand Rotation:Suitable for routing tasks with a right-hand direction.

  • Precision Cutting:cutting diameter for accurate and clean results.

  • Versatile Depth:cutting depth for various trimming and routing applications.

  • Extra New Edges:Ability to rotate and replace blades for longer bit life and versatility.


Product Name

Bearing Flush Trim Bit with 1/2" Shank

Type

Woodworking Flush Trimming

Color

Black

Size

SH 12.7 * D 24 * OL 82.5 * CL 30mm

Shank Diamater * Diameter *Overall Length * Cutting Length

Cutter Material

Durable Carbide, Carbon Steel

Usage

Trimming laminate edges,Template routing, Flush cutting,Pattern duplication,Precision laminate work

Matching Blade

30*12*1.5 mm Tungsten Carbide

Types of CNC Cutting Tools

Vertical machine

Advantages

Precision Cutting,Highly efficient heat dissipation, fast chip removal,Wider processing range.


Application

soft and hardwoods, particleboard, MDF, plywood, laminates, acrylic, etc.
