Woodworking Insert Solid Carbide Flush Trim CNC Router Bits Wood Router

Sales Models: Wholesale
Min Order:50 PCS
OEM: Support Customised

Material:
Availability:
Quantity:
  • SH 6.35 * D 19 * OL 53 * CL 12 mm

  • XIAPU

   3/4" Bearing Flush Trimming Router Bits - 2 cutting edges

   Router bits with 2 cutting edges for better control, smoother results and longer cutter life. The cutting blades are angled so that the material flows in the direction of the workpiece. This is not only more comfortable, but also allows for better results and reduces the risk of tear-out.

   The curved cutter is suitable for leveling boards, sanding or planing the top of vandalized boards, trimming and grooving.

   Suitable for CNC and other automatic routers, as well as portable hand and table routers. Such as woodworking machines, engraving machines, routers, etc.

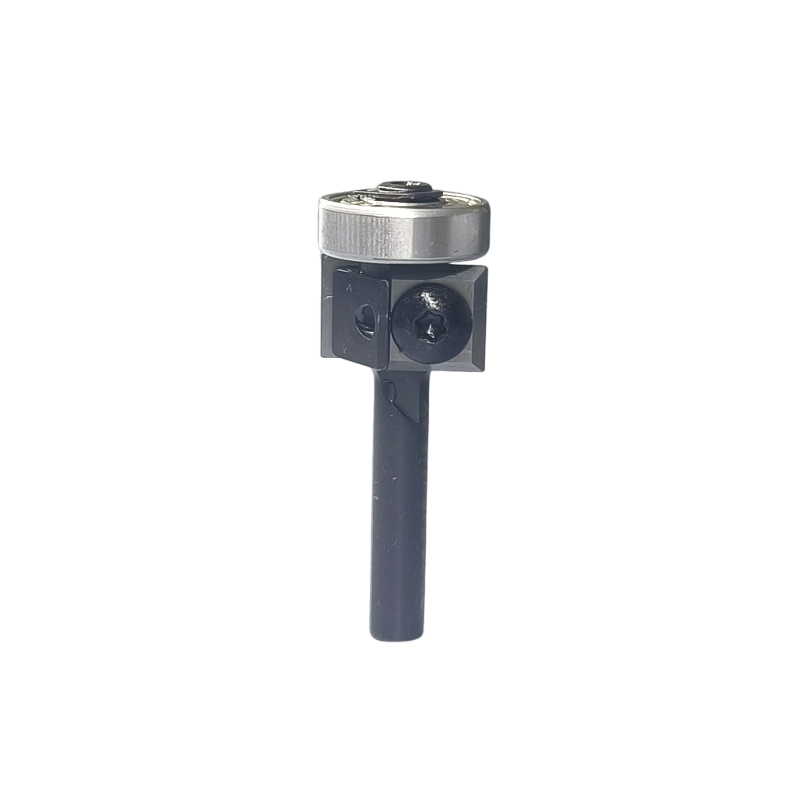

kou1-bjj

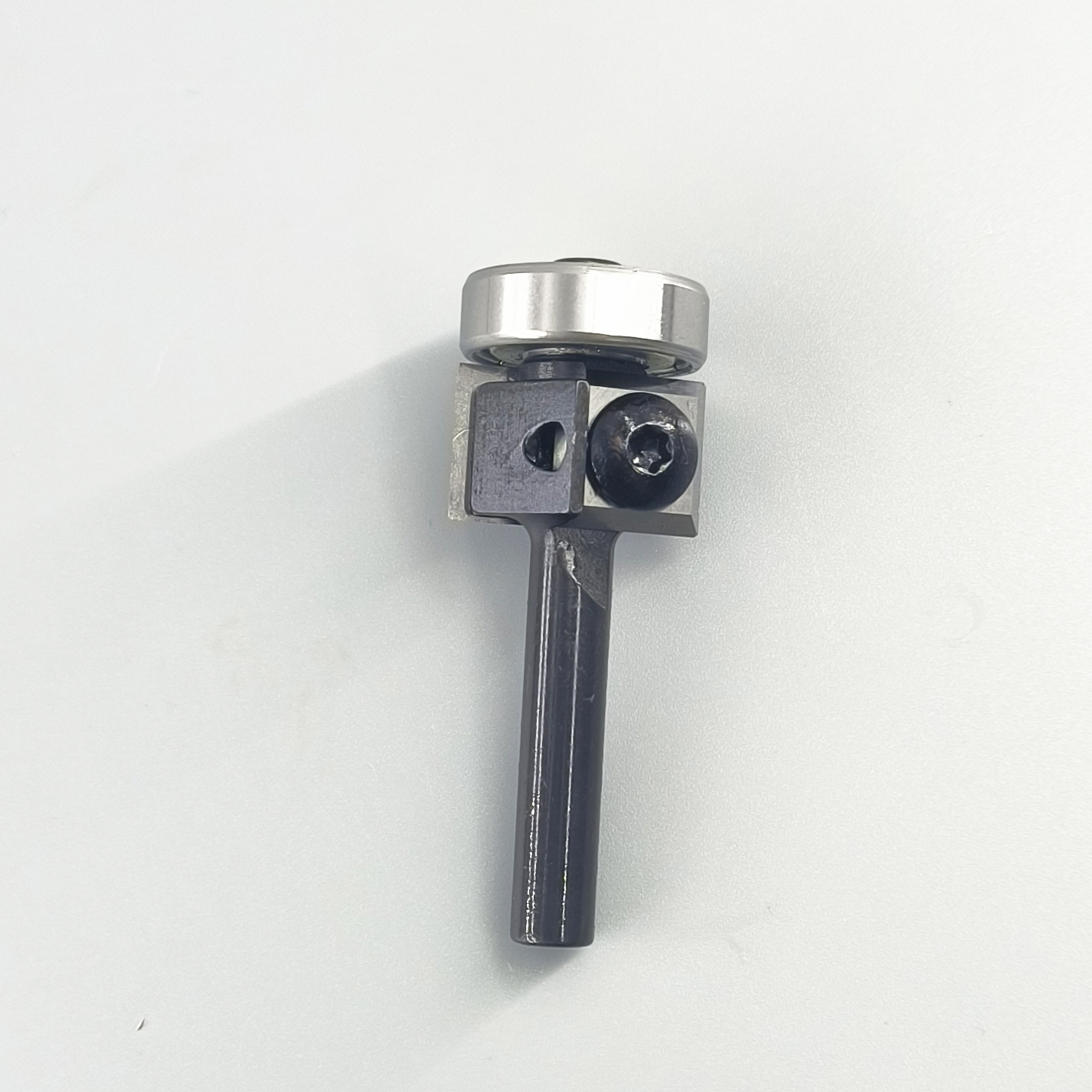

zhu09

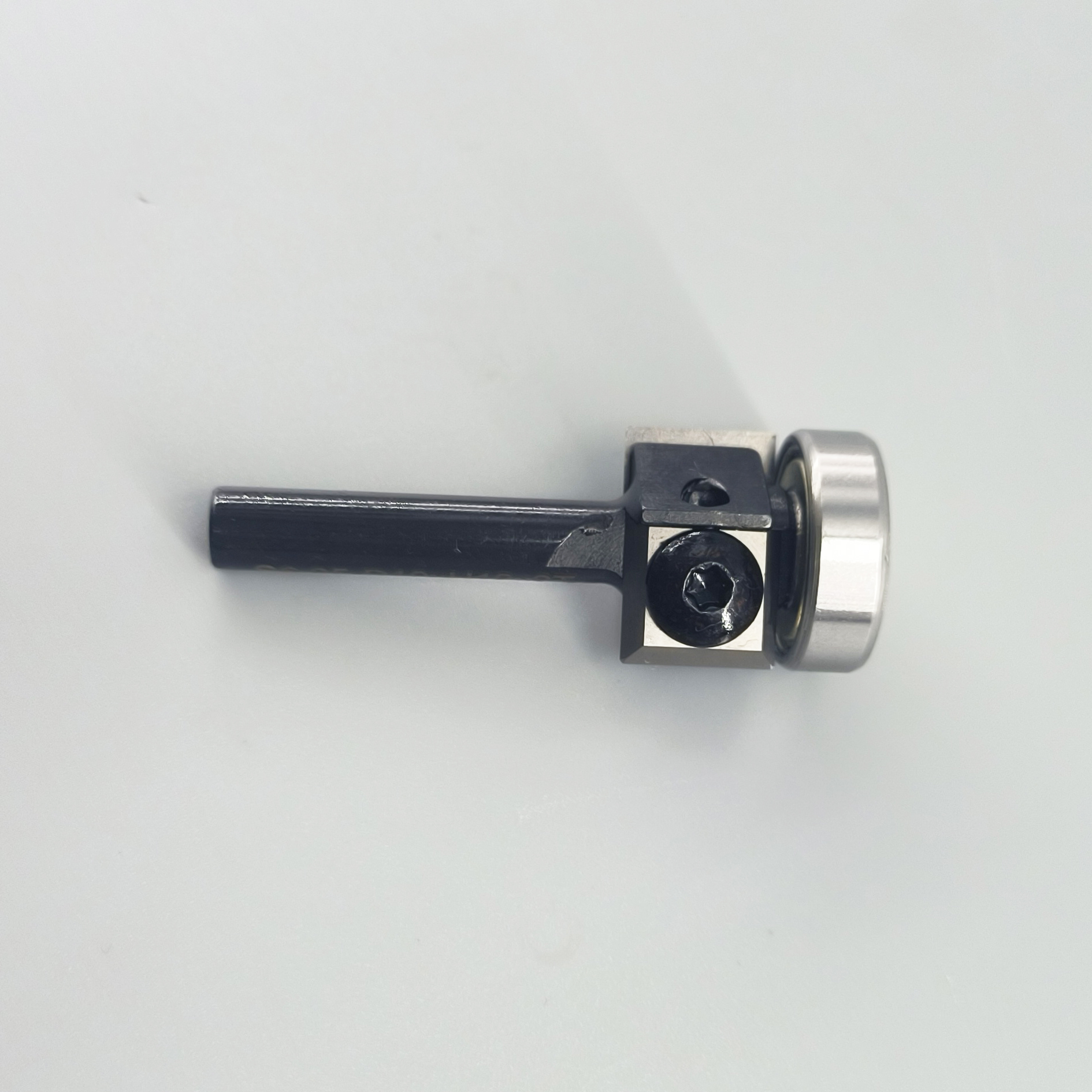

zhu07

✦ 2-slot design: efficient chip evacuation, smoother cutting.

✦ Precision cutting: Precise and clean cuts in diameter.

✦ Multiple depths: Depths of cut for a wide variety of cutting and milling applications.

✦ New Blades: Rotating and replaceable blades for longer life and versatility.


Product Name

3/4" Insert Solid Carbide Flush Trim Router Bit

Type

Woodworking Flush Trimming

Color

Black

Size

SH 6.35 * D 19 * OL 53 * CL 12 mm

Shank Diamater * Diameter * Overall Length * Cutting Length

Cutter Material

Durable Carbide, Carbon Steel

Usage

Trimming laminate edges,Template routing, Flush cutting,Pattern duplication,Precision laminate work

Matching Blade

12*12*1.5 mm Tungsten Carbide

Types of CNC Cutting Tools

Vertical machine

Advantages

Precision Cutting,Highly efficient heat dissipation, fast chip removal,Wider processing range.


Application

soft and hardwoods, particleboard, MDF, plywood, laminates, acrylic, etc.
