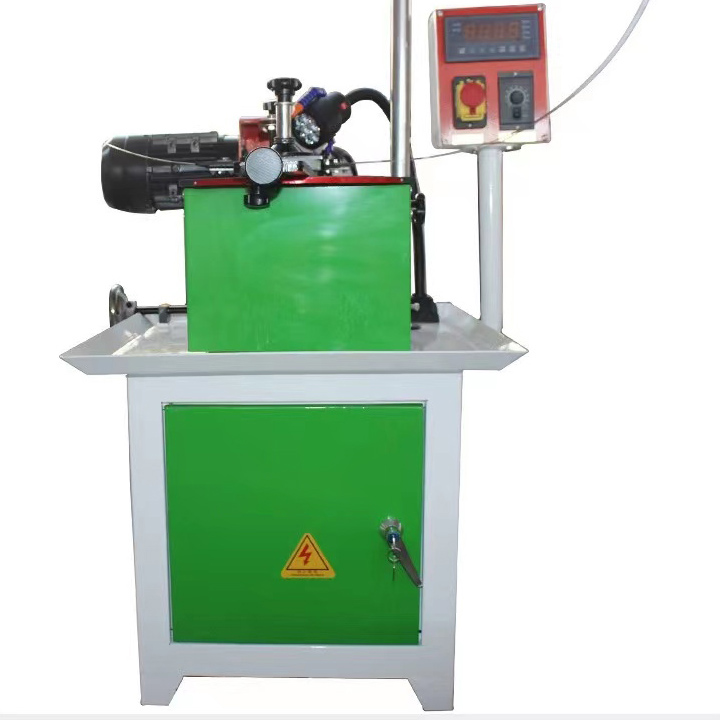

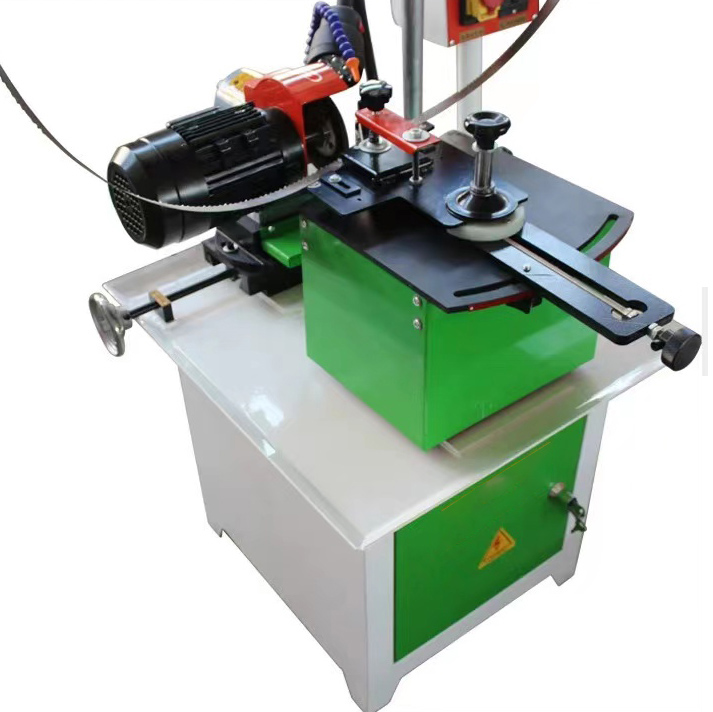

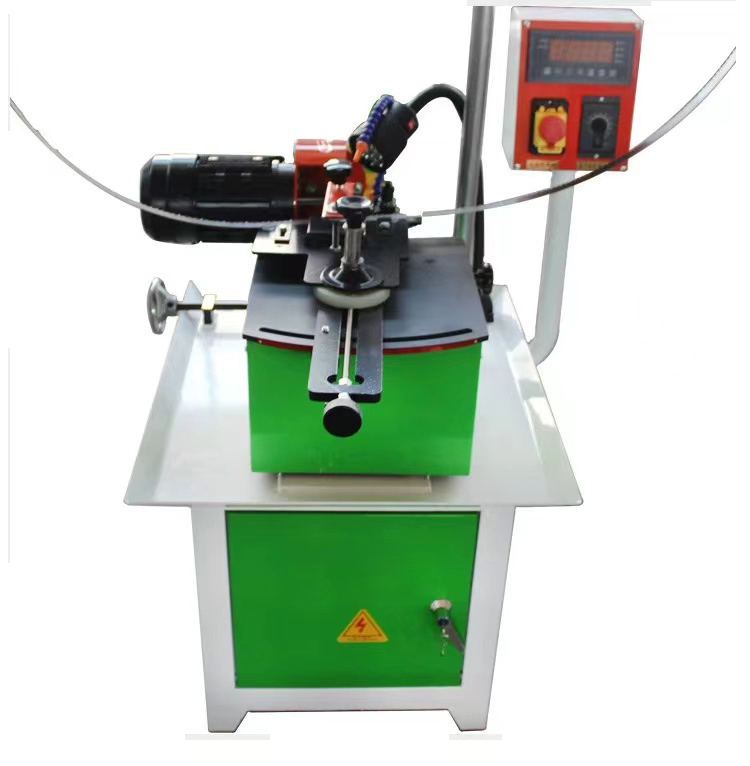

Gear grinding machine
XIAPU
The machine is designed for sharpening various kinds of carbide tipped saw blades from size 100mm to 800mm. It's also suitable to grinde other material, such as plastic, wood, aluminum alloy for different purpose like furniture manufacturing, decoration etc. materials.
This machine adopts pure copper motor with strong power, good heat dissipation and low loss. Saw blade compression device, can prevent the saw blade from loosening; Automatic water circulation tank, can cool the saw blade; universal joint water pipe, can adjust the direction and position of water flow at will.
The machine is designed for sharpening various kinds of carbide tipped saw blades from size 100mm to 800mm. It's also suitable to grinde other material, such as plastic, wood, aluminum alloy for different purpose like furniture manufacturing, decoration etc. materials.
This machine adopts pure copper motor with strong power, good heat dissipation and low loss. Saw blade compression device, can prevent the saw blade from loosening; Automatic water circulation tank, can cool the saw blade; universal joint water pipe, can adjust the direction and position of water flow at will.
1.Intelligent display panel for more accurate display of values;
2.Automatic water circulation tank for fast cooling of the saw blade;
3.Complete functions to meet your various needs of sharpening;
4.The machine adopts pure copper motor, with strong power, good heat dissipation and low loss.
1.Intelligent display panel for more accurate display of values;
2.Automatic water circulation tank for fast cooling of the saw blade;
3.Complete functions to meet your various needs of sharpening;
4.The machine adopts pure copper motor, with strong power, good heat dissipation and low loss.
Saw Blades Size | 100-800MM |
Width:20-70MM | |
Blade pulling teeth speed | 0-55pcs/min |
Blade teeth spacing | 5-45MM |
Grinding wheel RPM | 2800r/min |
Tungsten Gringding wheel | 150X32X10MM |
Grinding wheel power | 550w |
VOLTAGE | 220V/50HZ |
Pulling teeth power | 120w |
Packing size | 800X800X1100mm |
Teeth Type available | Straight teeth,left-right ,3-left and 1-right teeth,3-right and 1-left |
Saw Blades Size | 100-800MM |
Width:20-70MM | |
Blade pulling teeth speed | 0-55pcs/min |
Blade teeth spacing | 5-45MM |
Grinding wheel RPM | 2800r/min |
Tungsten Gringding wheel | 150X32X10MM |
Grinding wheel power | 550w |
VOLTAGE | 220V/50HZ |
Pulling teeth power | 120w |
Packing size | 800X800X1100mm |
Teeth Type available | Straight teeth,left-right ,3-left and 1-right teeth,3-right and 1-left |
