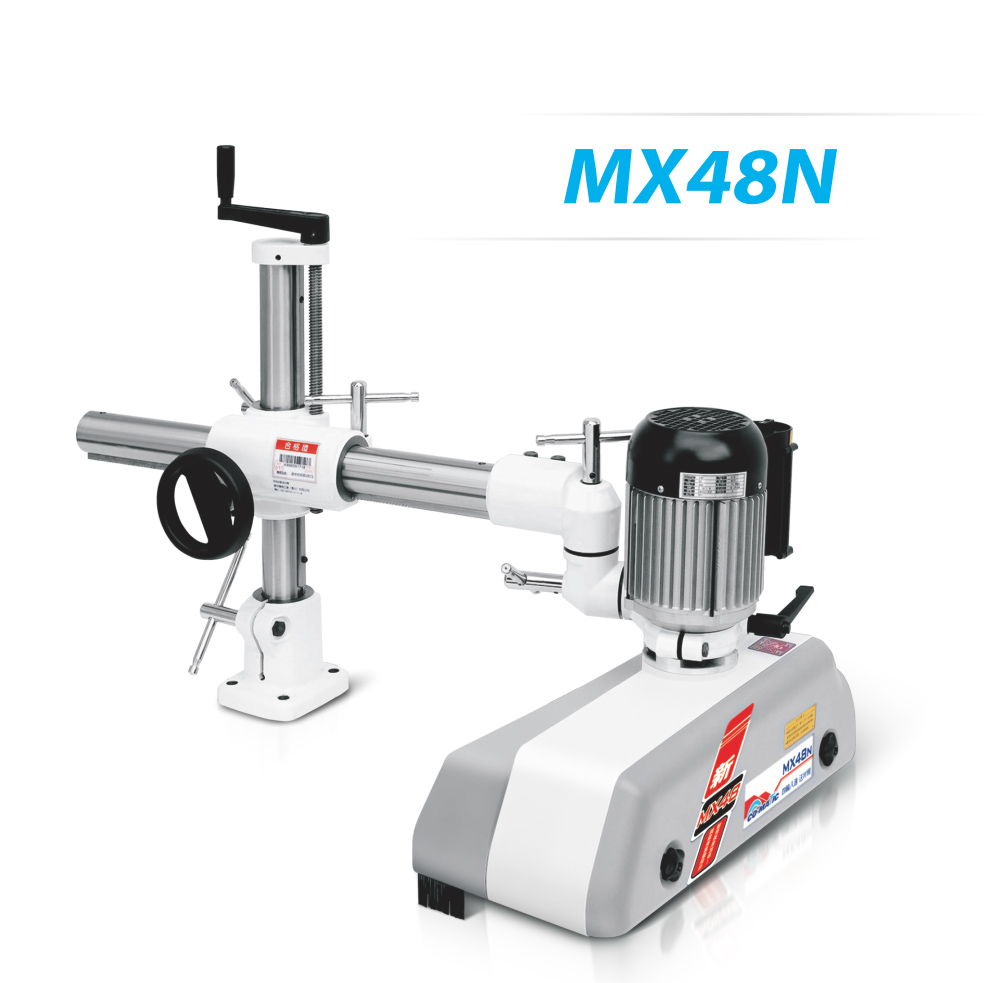

Latest 4 Rollers 8 Speed 1 HP MX48N Automatic Band Saw Feeder Power for woodworking

Sales Models: Wholesale
Min Order: 1 PCS
Power Feeder:
Availability:
Quantity:
  • MX48N

  • XIAPU

mx48n-application




A-NEW

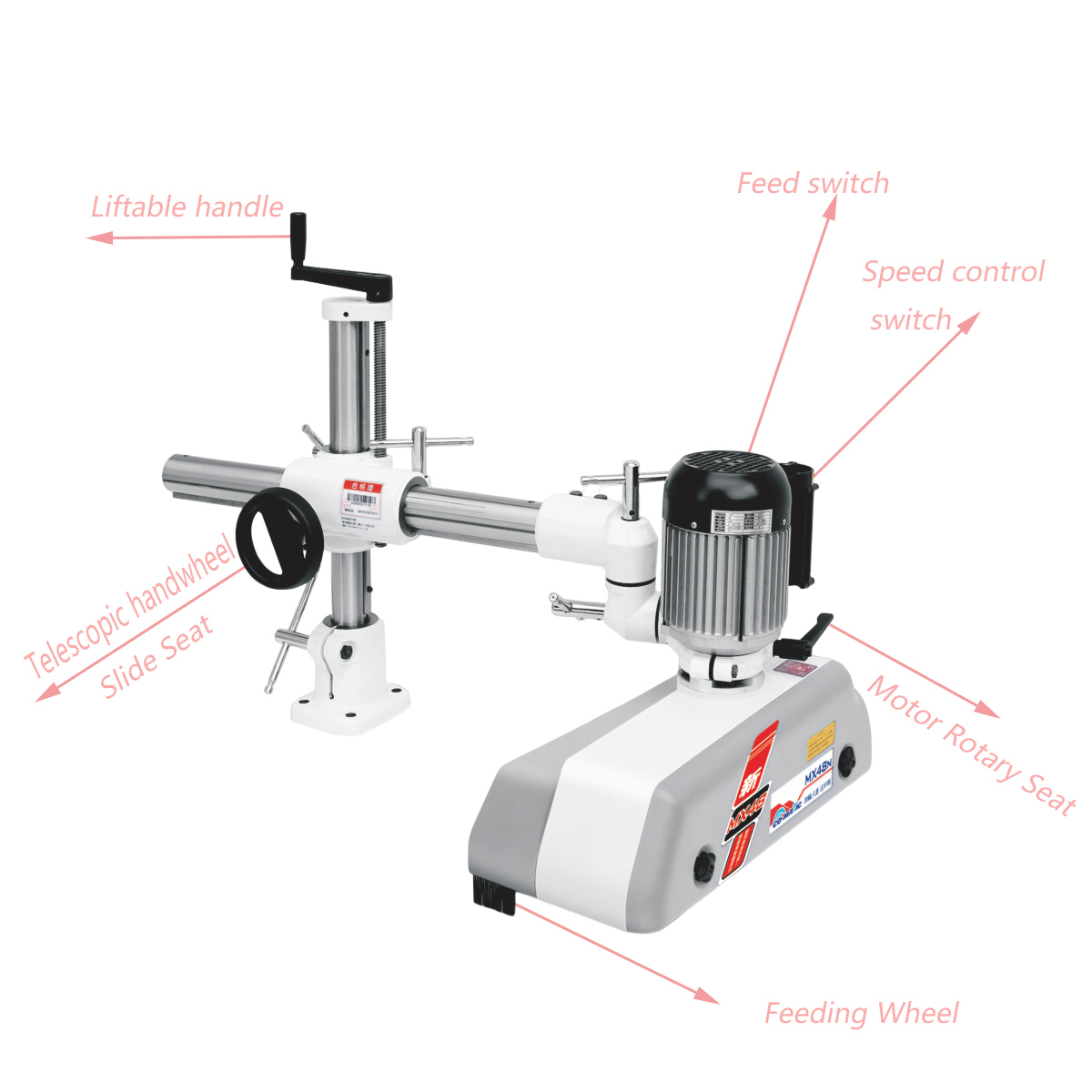

mx48n-application2

MX48N -APPLICATION-3

mx48n-application1

    Attractive Feeding: Our power feeders feature a 1 HP, 380V single-phase motor for milling and ripping long or wide pieces of wood easily, accurately and safely.

    Cast aluminum body: Cast aluminium and cast iron are the main materials used in our power feeders. In addition to good corrosion resistance, our products feature high strength and super rigidity.

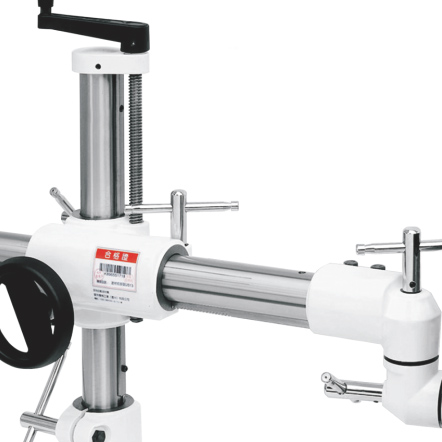

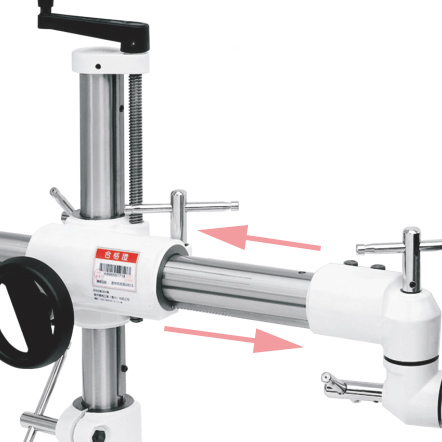

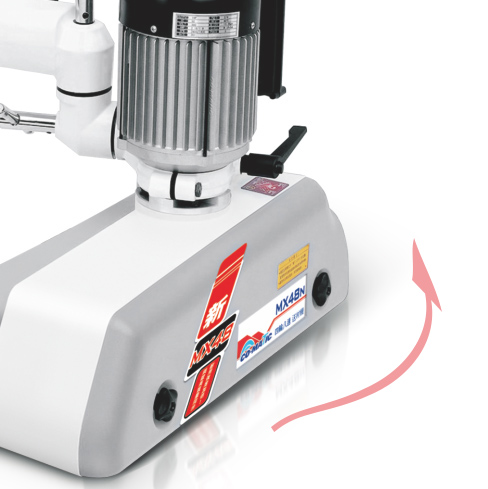

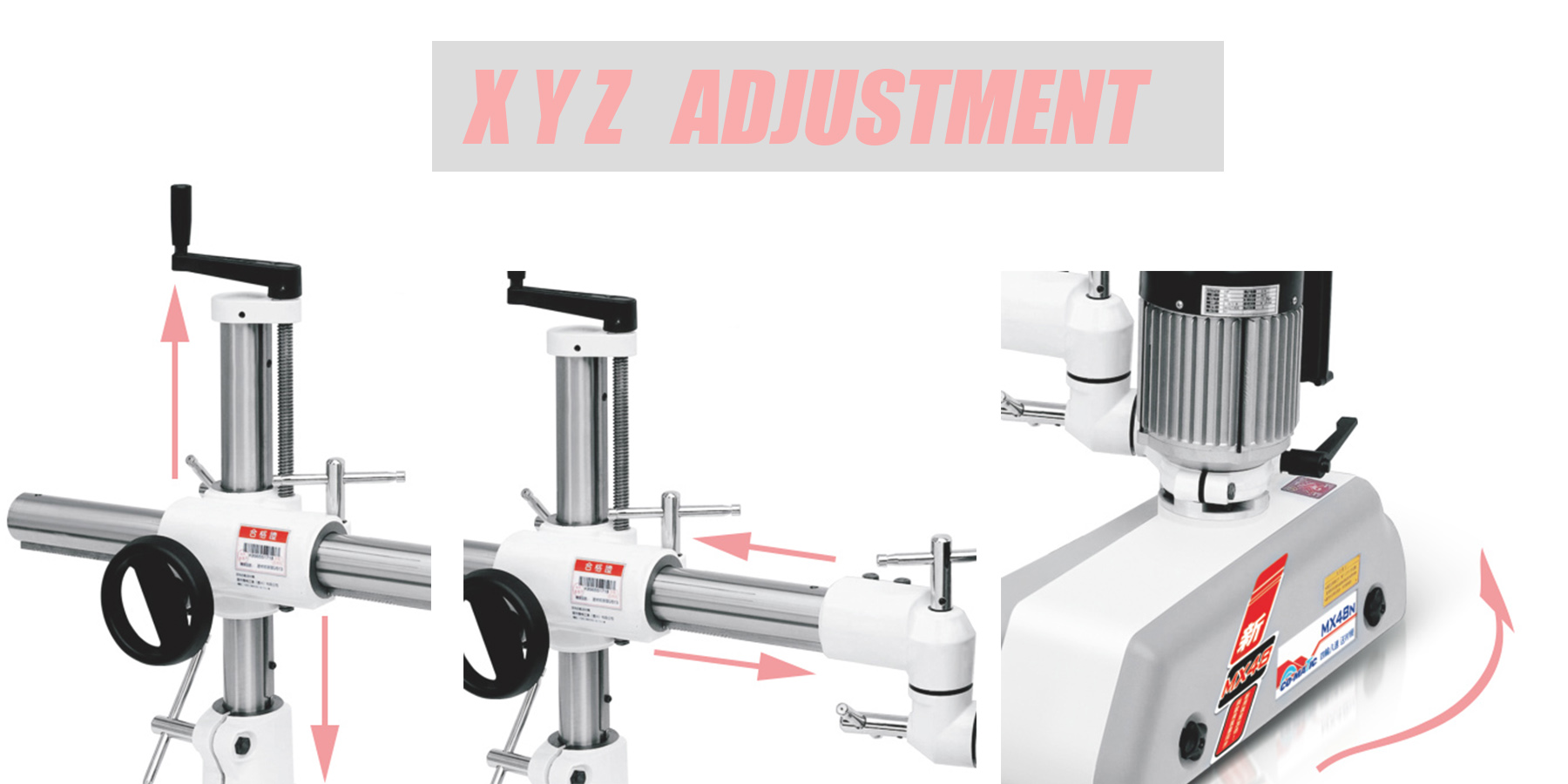

    X-Y-Z Axis Adjustment: Universal joints allow you to adjust the route and height of your feeder to accommodate a wide range of workpiece sizes.

    Rotation Control: Our wood feeders support eight feed rates and forward or reverse switches.

    Advanced Roller Design: The four polyethylene rollers on our woodworking electric feeders are specially designed with 3/4-inch of overhanging travel for workpieces of varying thicknesses, ensuring firm pressure on the workpiece throughout the operation.


Model

Latest 4 Rollers 8 Speed Power Feeder-MX48N

Feeding Speeds

(50Hz)3.5/4/7/8/10/15/24/30

M/min.

(60HZ) 4/5/8/16.5/16.5/26/33

M/min.

Motor

1 HP

Rated voltage

380 V

Maximum Machining Length

490 mm

Maximum Machining Width

800 mm

Maximum Lifting Distance

223 mm

Maximum Lateral Distance

428 mm

Roller Size

Φ120 x W60mm x 4

Roller Suspension

25 mm

Net Weight(Feeder+Stand)

30 + 35 Kgs

Gross Weight(Feeder+Stand)

32 + 37 Kgs

Carton for Body(Feeder)

740 x 315 x 535 mm

Carton for Stand(Stand)

750 x 315 x 290 mm

Capacity of 20’Container

132 Sets

Control Method

Fully automatic.Positive, reverse, fast and slow variable polarity speed regulation.

Usage

Vertical Shaft Feeder,Timber Push Presses.
