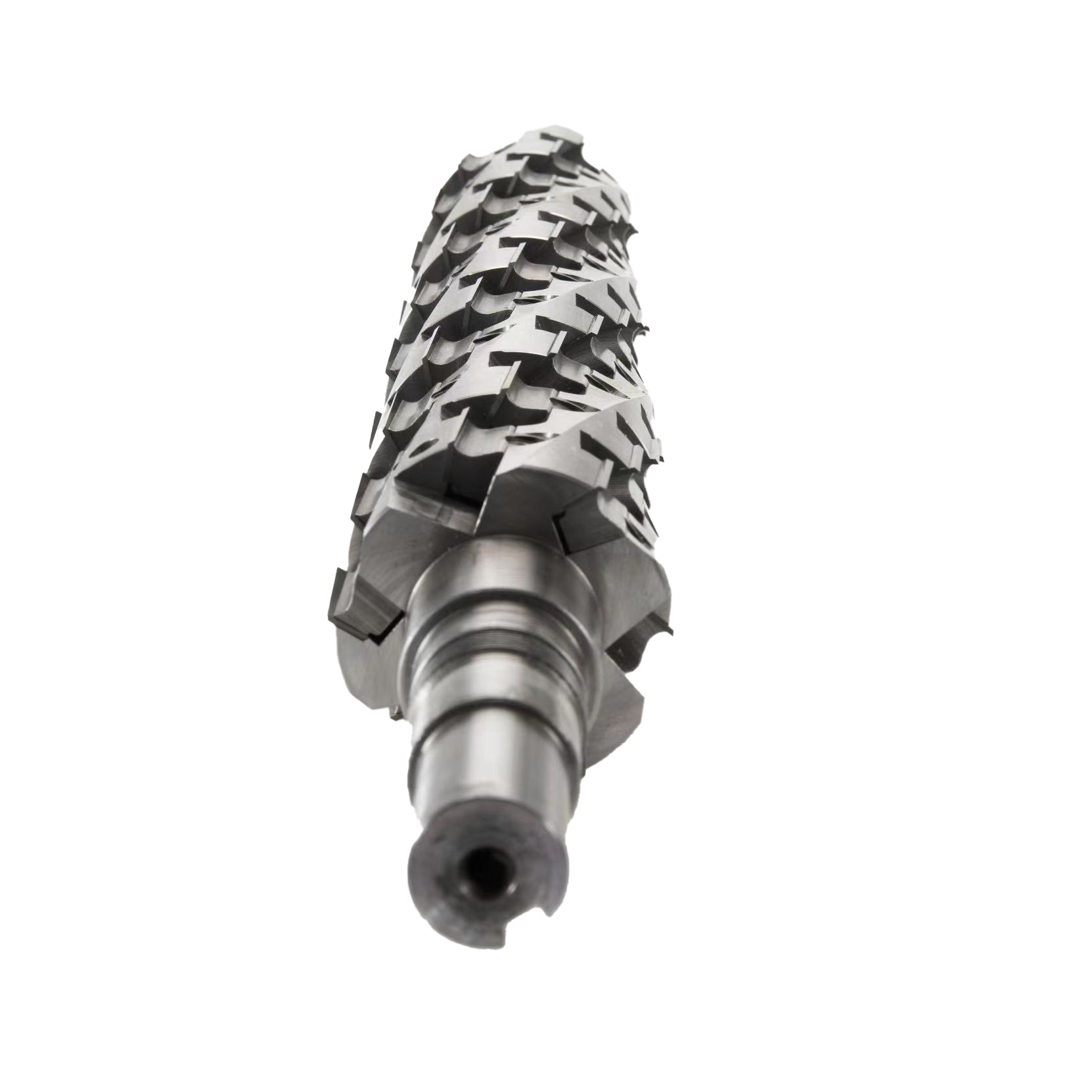

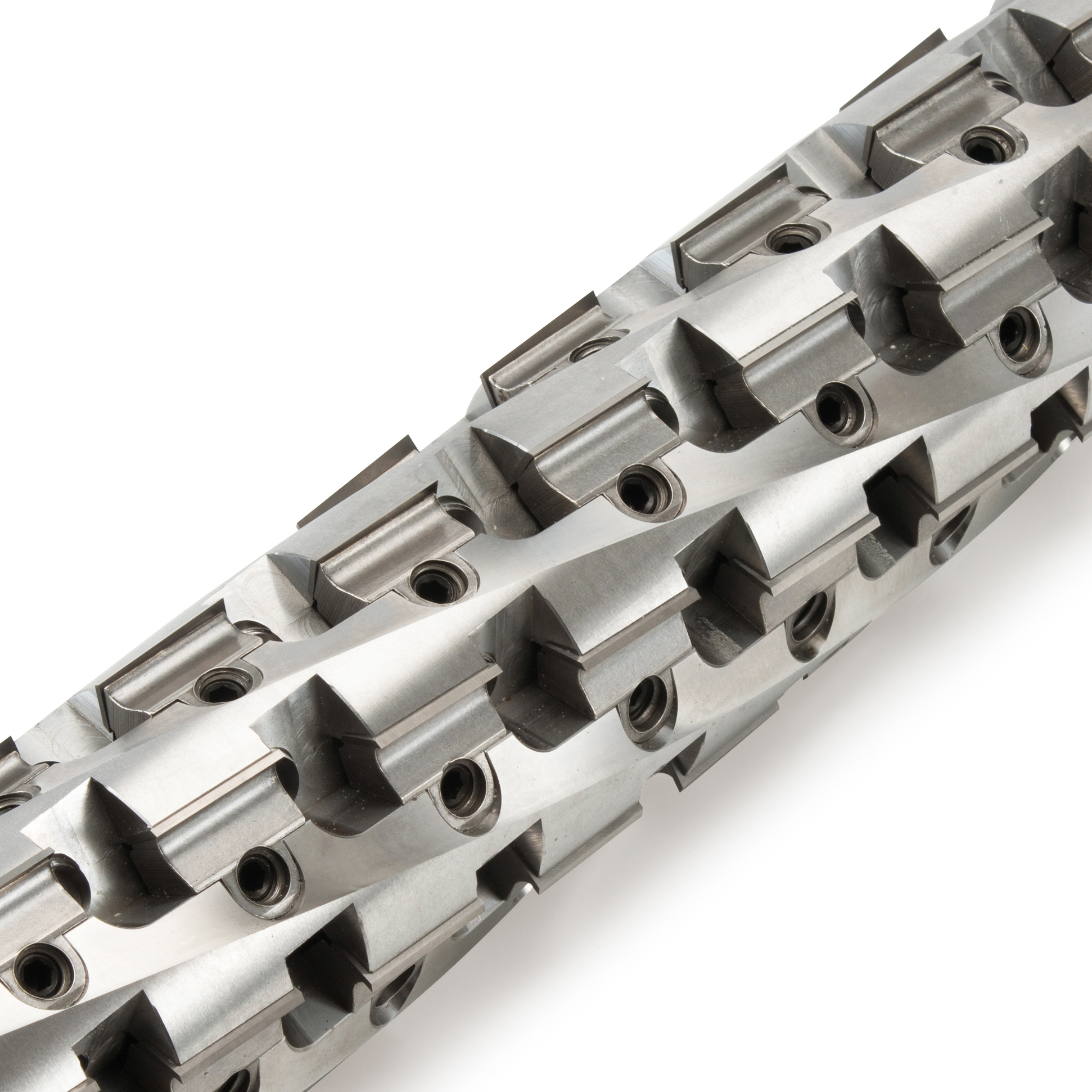

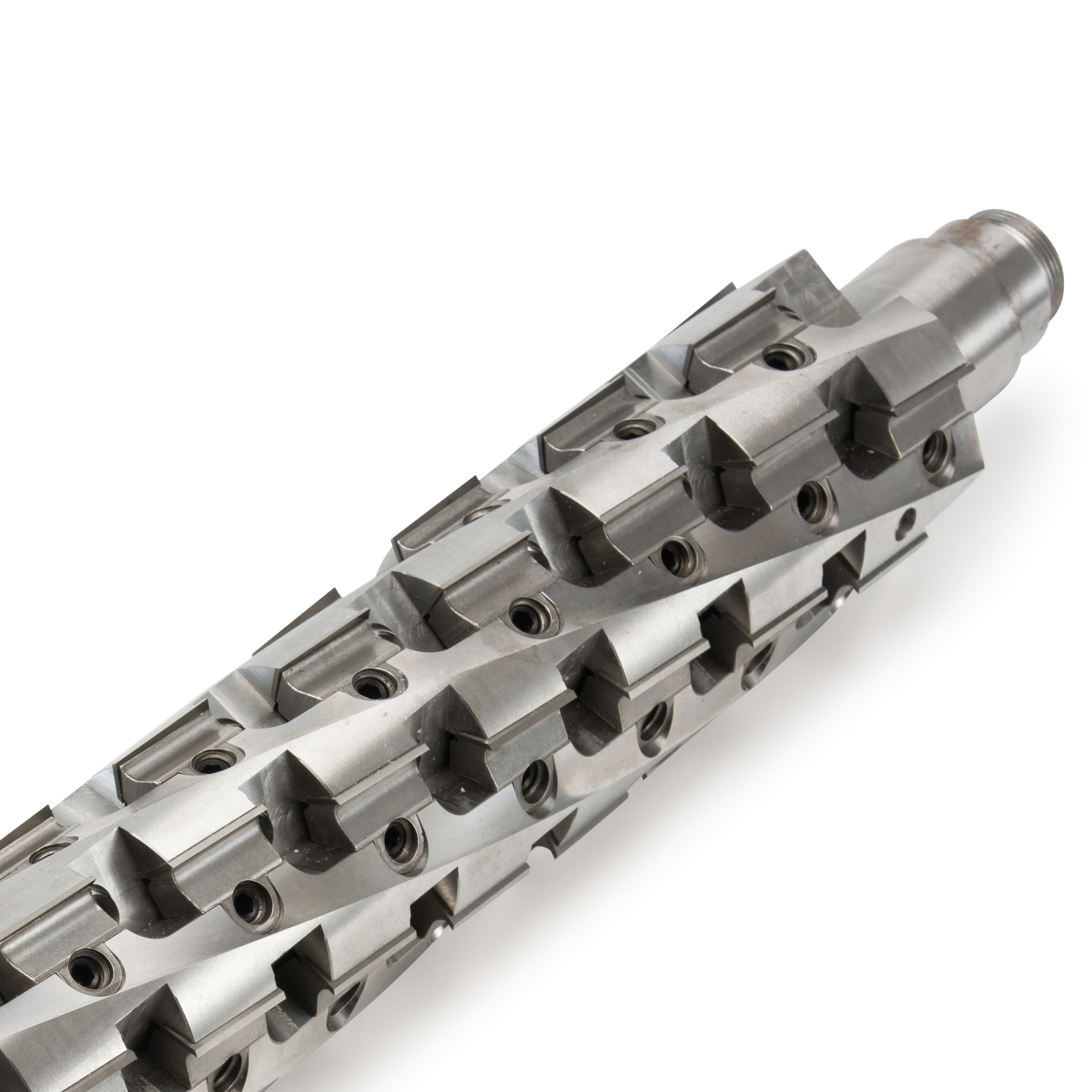

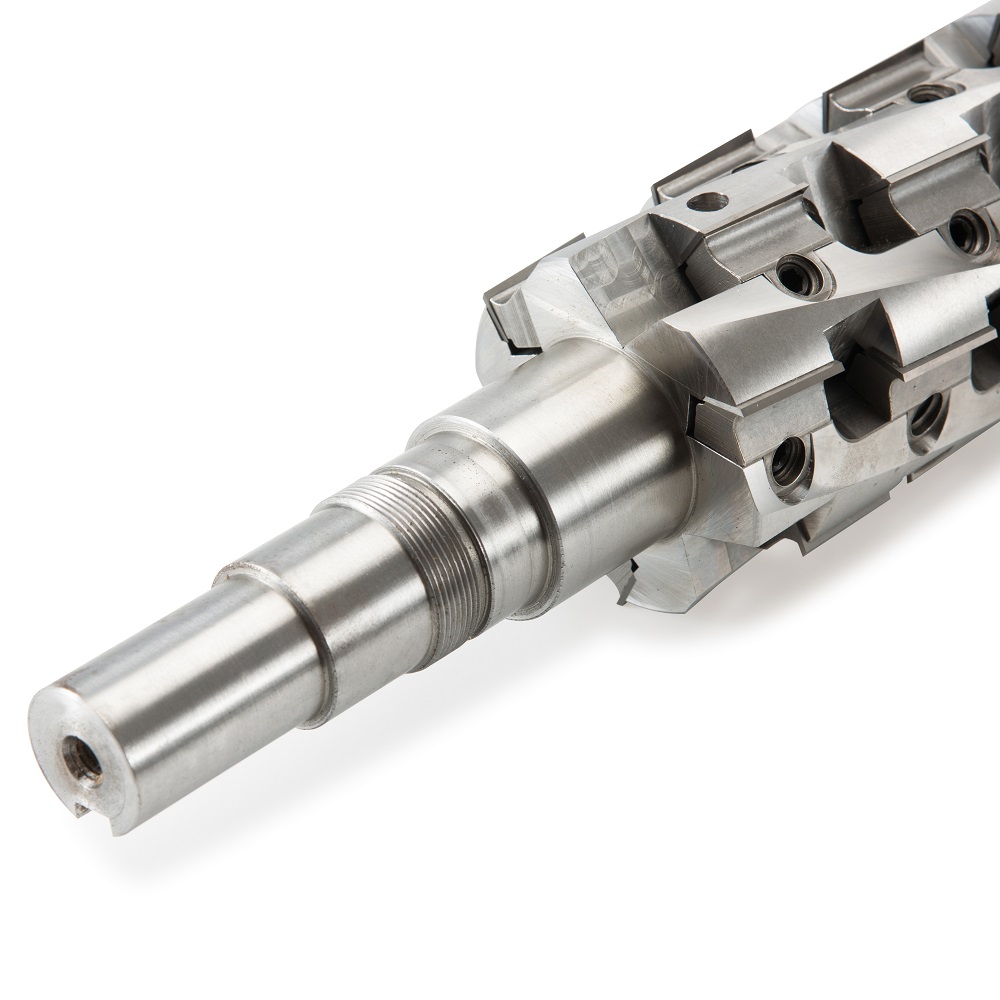

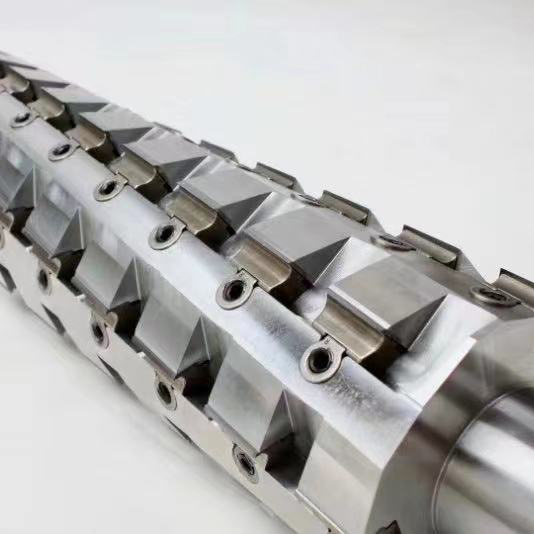

Helical Cutter Head Planer Cutterhead Planer Spare Parts

Sales Models: Wholesale      Min Order:1 PCS      OEM: Support Customised
Color:
Size:
Material:
Availability:
Quantity:
  • Heavy Duty Sprial Cutter Shaft

  • XIAPU

  This series of spiral cutter specifications according to customer specific manufacturing.Helical cutter head features smaller which contact the wood and an angle shearing the fibers rather than tearing at them, the cutting performance is excellent and the slight bit of snipe that was getting with the straight knives is completely gone, the wood surface would be so much smoother.

  The biggest difference of helical cutterhead is the noise reduction, the section cutting process makes the wood chips very fine, then the chip removal is easier. Energy saving and power saving, while reducing tear out more effectively than conventional straight-knife cutterheads.

1.The cutterhead body with steel or aluminum alloy materials available.

2.Smooth cutting, low noise and low cutting resistance.

3.Easy installation and long service life.

4.The cutterhead is dynamically balanced and runs smoothly.

5.Choice of T.C.T knife bit size 30x12x1.5mm.

6.Other special specifications, can be specified separately.

Product Name

Woodworking heavy duty wood spiral cutter head for planer

Material

Alloy Steel

Product specification

Customized

Blade Size

T.C.T 30×12×1.5mm

Advantage

Perfect High Cutting Efficiency

Cutting Type

Heavy Cutting

Surface condition

Spiral Surface Fast Cutting

Apply Wood Machine

Wood Joniters,Hand Jointer,Single Wood Planing Machine,Double Side Planer,Wood Planer Sander, Woode Shaving Machine


Model

Out diameter

Length

Wings

Blade Size

XP10-03

125mm

450mm

6T

30*12*1.5mm

XP10-04

125mm

500mm

6T

30*12*1.5mm

XP10-05

125mm

600mm

6T

30*12*1.5mm

XP10-06

125mm

610mm

6T

30*12*1.5mm

XP10-07

125mm

630mm

6T

30*12*1.5mm

XP10-08

125mm

640mm

6T

30*12*1.5mm
