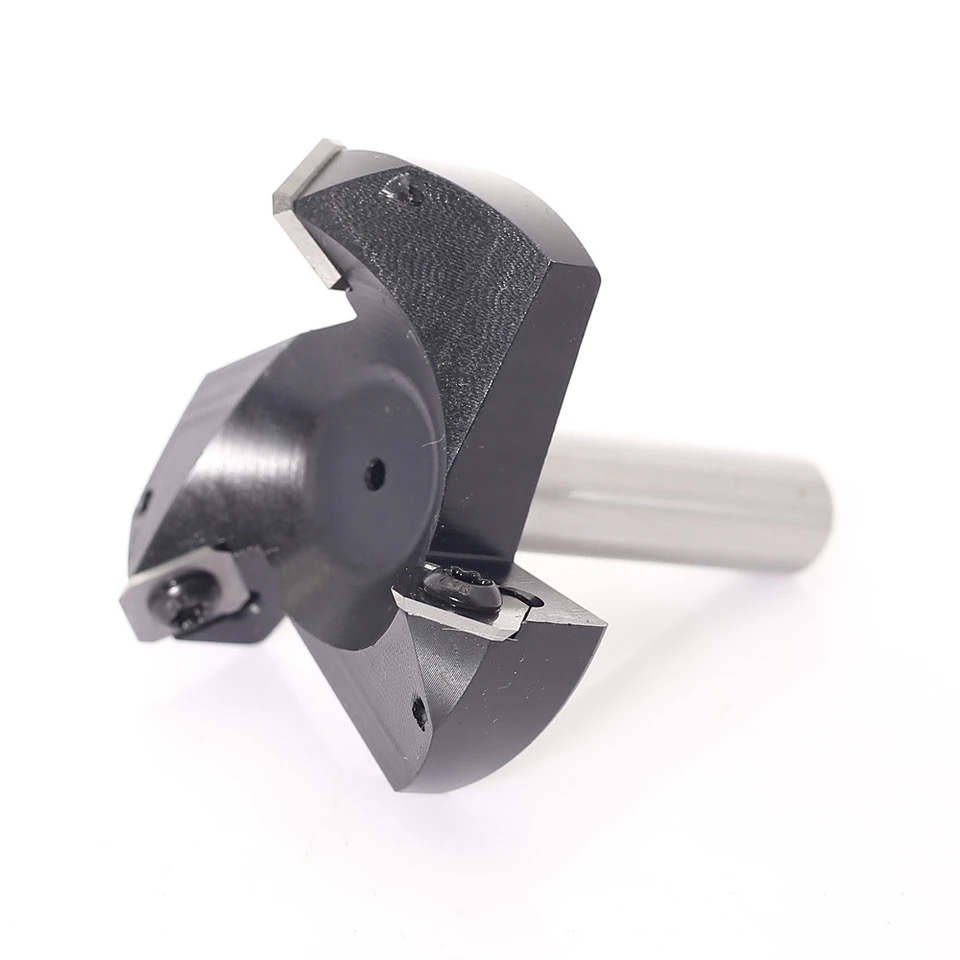

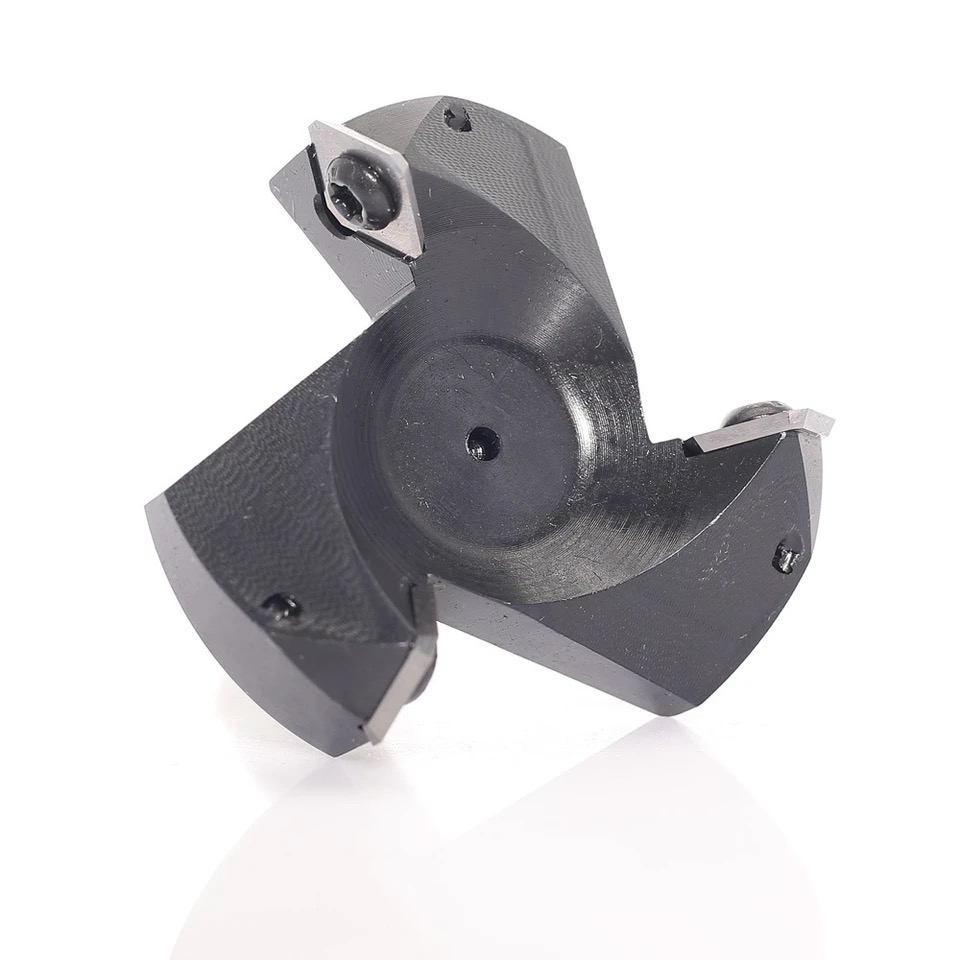

Carbide Flattening Router Bit CNC Surfacing Router Bits

Sales Models:Wholesale     Min Order:1Pcs     OEM:Support Customised
Color:
Material:
Shank size:
Availability:
Quantity:
  • 3-Flute CNC Wood Router Bits

  • XIAPU

  CNC router bits are specialized cutting tools designed for use with computer numerical control (CNC) routers. Many are also suitable for use in hand-held routers, providing double the utility. High quality router bits are essential components of CNC machining, enabling precise and efficient cutting, shaping, and carving of various materials, including wood, plastic, non-ferrous metal, steel, and composites.

  Insert carbide spoilboard surfacing & chamfering router bit, great for planing large surface areas. Higher number of teeth allows for higher feed rate. Also suitable for router sled machines.

  Woodworking bevelled tooth board breaker knives are generally used on wood planers or wood planer machines. These knives are mainly used for working on wood and can effectively plane the surface of wood to make it smoother and flatter.

  Cutting the surface of wood: the design of bevelled teeth on woodworking bevelling cutter can effectively cut the surface of wood and remove the uneven and rough part of the surface of wood, so as to make the surface of wood smoother and more even.


  Adjusting the thickness of wood: the thickness of wood can be adjusted according to the need by using the woodworking mitre cutter, so that the wood can reach the required specification and size.


  Improve work efficiency: Woodworking mitre cutter can plane wood quickly and efficiently, and improve the work efficiency of woodworking.


  Improve the quality of wood: By using woodworking bevelled tooth breaker to planing wood, it can improve the quality of wood, make the surface of wood smooth and burr-free, and improve the aesthetics and texture of wood.

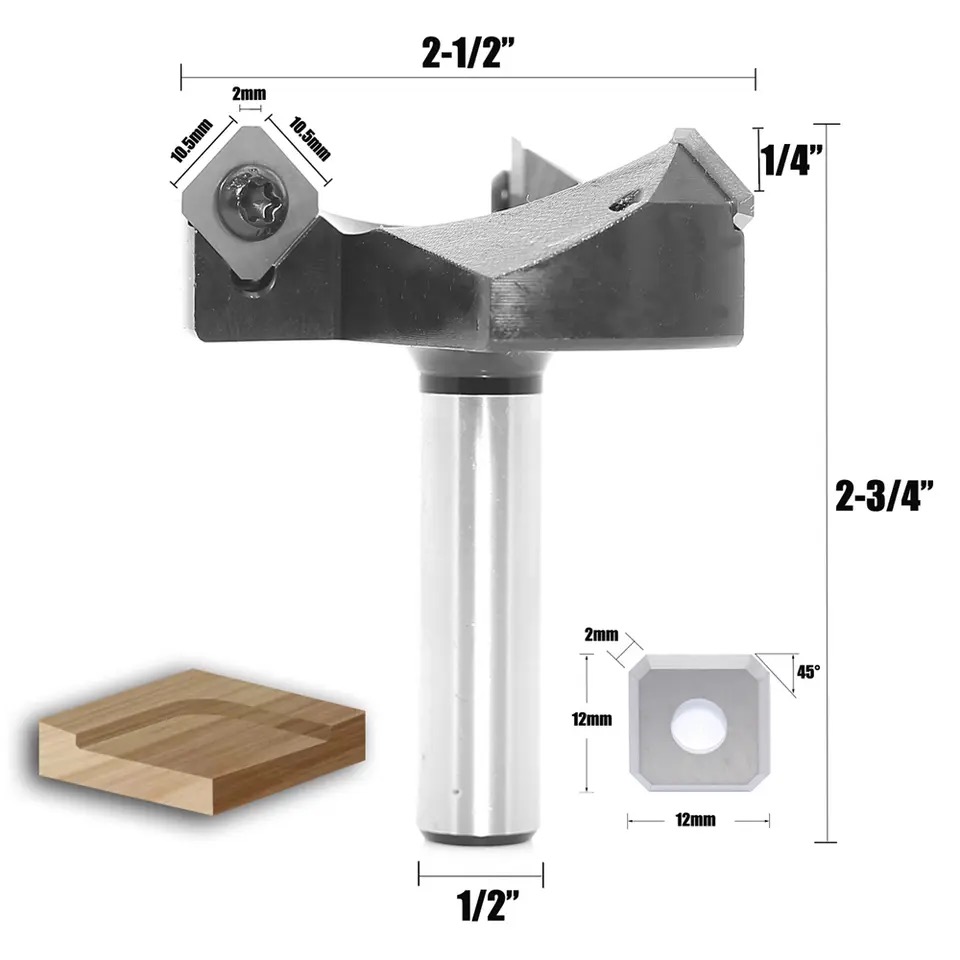

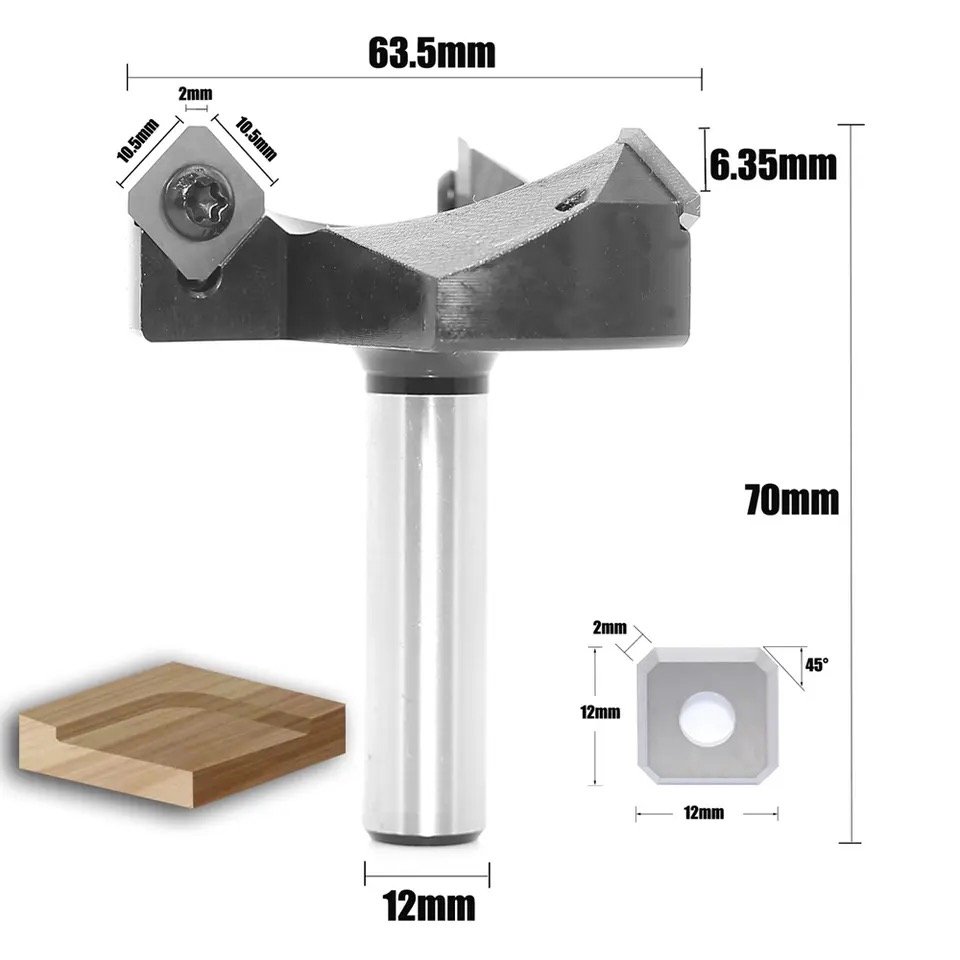

Product Characteristics

1. 3-sided solid carbide insert knives for highest quality of cut, maximum cutting efficiency.

2. Tool can plunge up to a maximum depth of 6mm (1/4"), then start resurfacing

3. Tool capable of removing very thin layers of material, less than 0.001" per pass

4. The unique chamfer corner insert design, creates a flawless surface.

5. The 3 wing design, resulting in a more balanced tool while running.

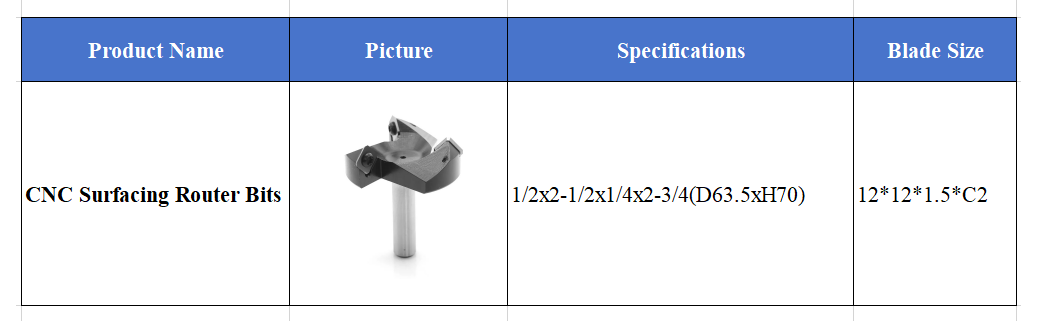

Data Sheet

Product Name

Spoilboard Surfacing Router Bits

Material

Alloy Steel

Application

CNC Routers

Blade size

T. C.T insert size 12*12*1.5*C2

Net Weight

400g

Package

Plastic Box

Package Size

45x 45x 135mm
