CNC 1/2 Inch Shank Router Bit Carbide 4-Flute Face Milling Cutter Spoilboard Surfacing Insert CNC Router Bit

Sales Models: Wholesale
Min Order:100 PCS
OEM: Support Customised

Size:
Availability:
Quantity:
  • 4-Flute Face Milling Cutter

  • XIAPU

    CNC face milling carbon steel end mill / router bit with solid carbide insert knives.

    This 1/2 inch surfacing bit, designed for super-smooth cuts, is used in your CNC router to surface or flatten your CNC router spoilboard (also called a spoiler board, or waste board), as well as slab flattening, and prepping your CNC router project surfaces. The surfacing bit for CNC routers is a super-important bit to have.

    Tool body made from carbon steel with solid carbide cutting insert knives for maximum feed and stability, designed for CNC and milling machines. Each tip is made from micrograin carbide for maximum tool life and has 4 cutting rounded corners that can be rotated.

    New products in our shop. Support OEM customisation.

    We sell carbide inserts for use with our shop.

    If you are interested in the product, you can click this link and consult us for more product details.

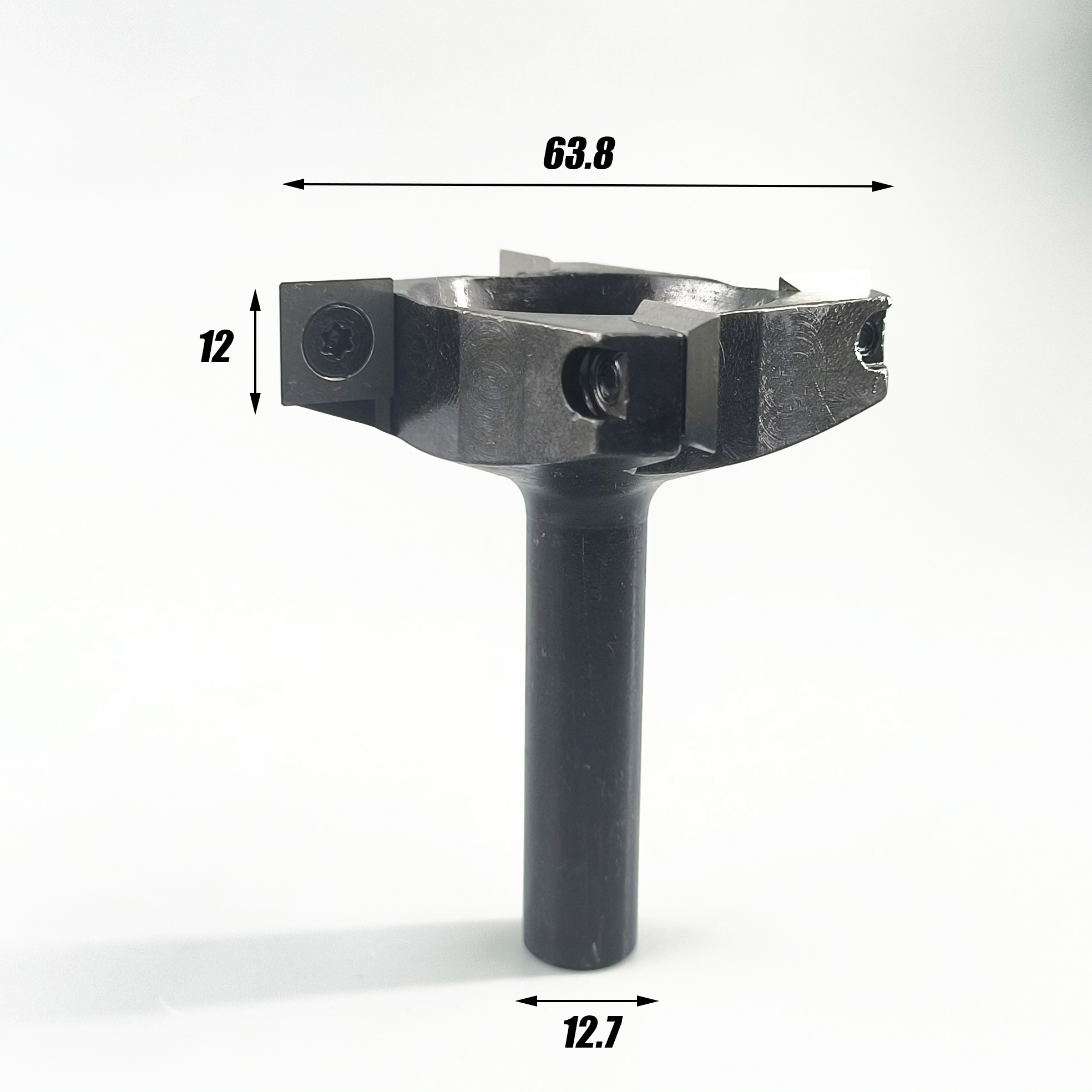

new-zhu09-chicun

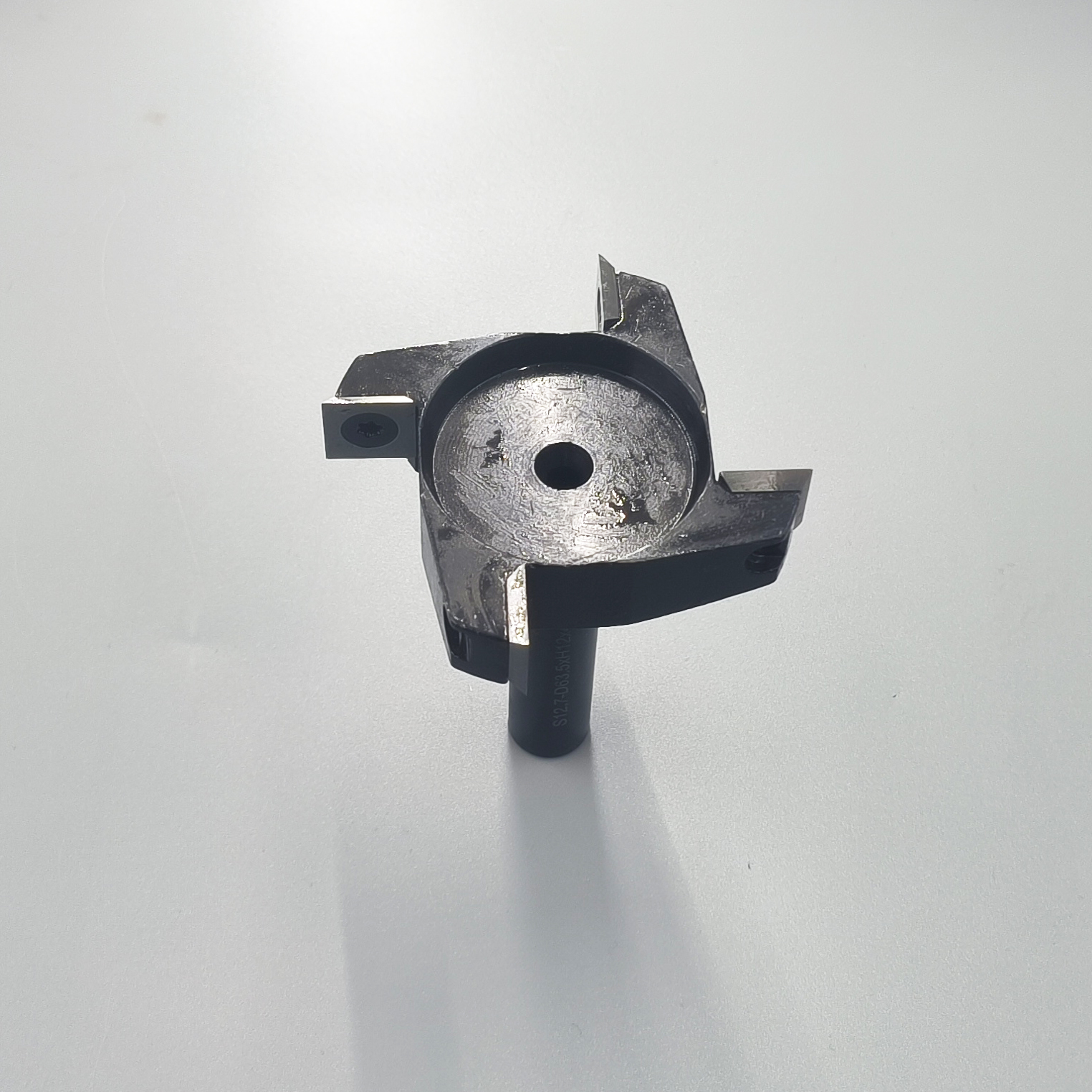

new-zhu04

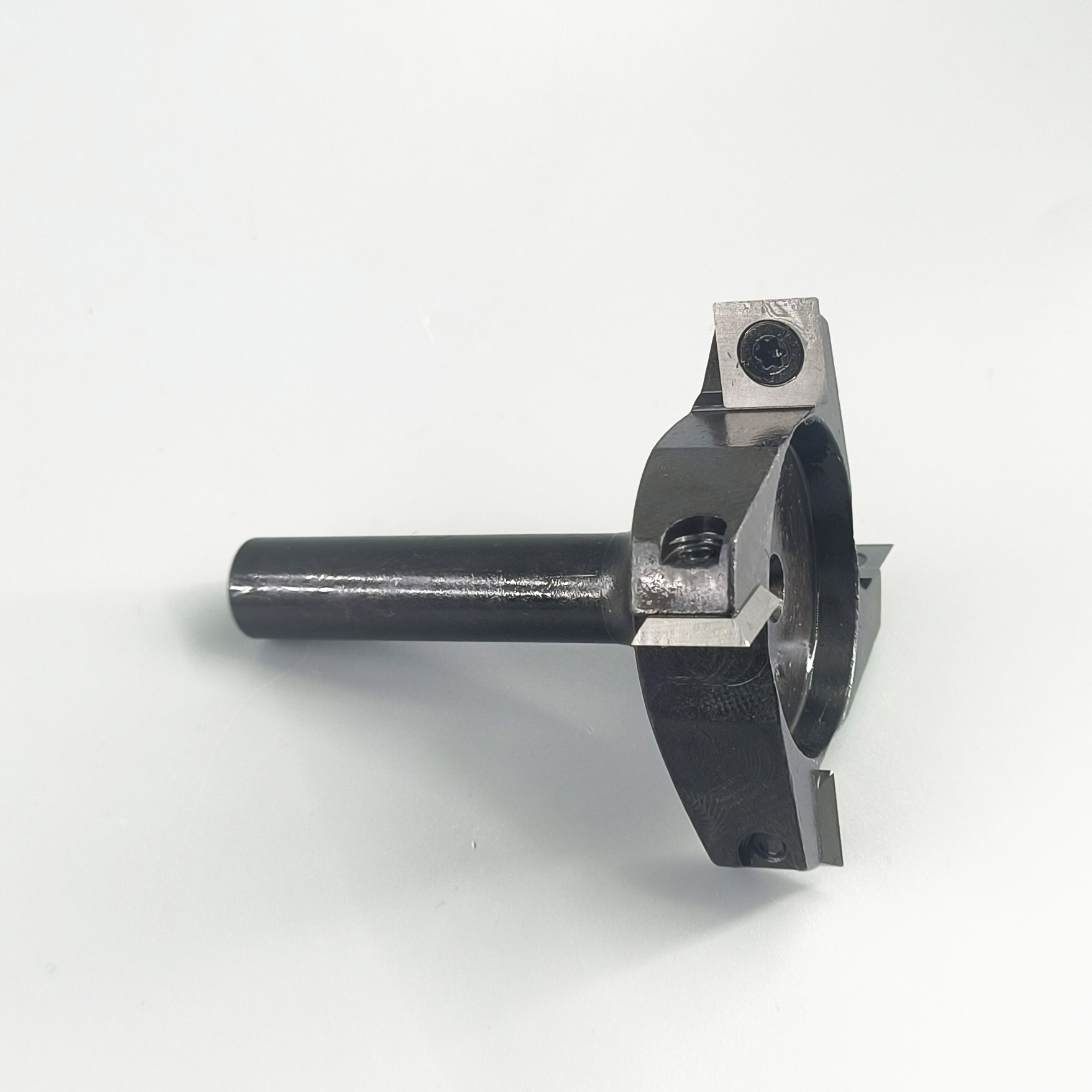

new-zhu15


l Smooth finish cuts and superior wear resistance

l Long-lasting and durable blade life

l Highly efficient heat dissipation, fast chip removal

l Replaceable blades, can reduce costs

l Wider processing range


Product Name

CNC Spoilboard Surfacing Router Bit - 1/2” Shank


Shank Diameter

1/2”

Cutter Material

45# Carbon Steel

Number of Wings

4 Wing

Matching Blade

12*12*1.5 mm Tungsten Carbide Blade

Application

Flattening / Milling / Surfacing / Facing

Shouldering / Rabbeting

Slotting / Grooving
