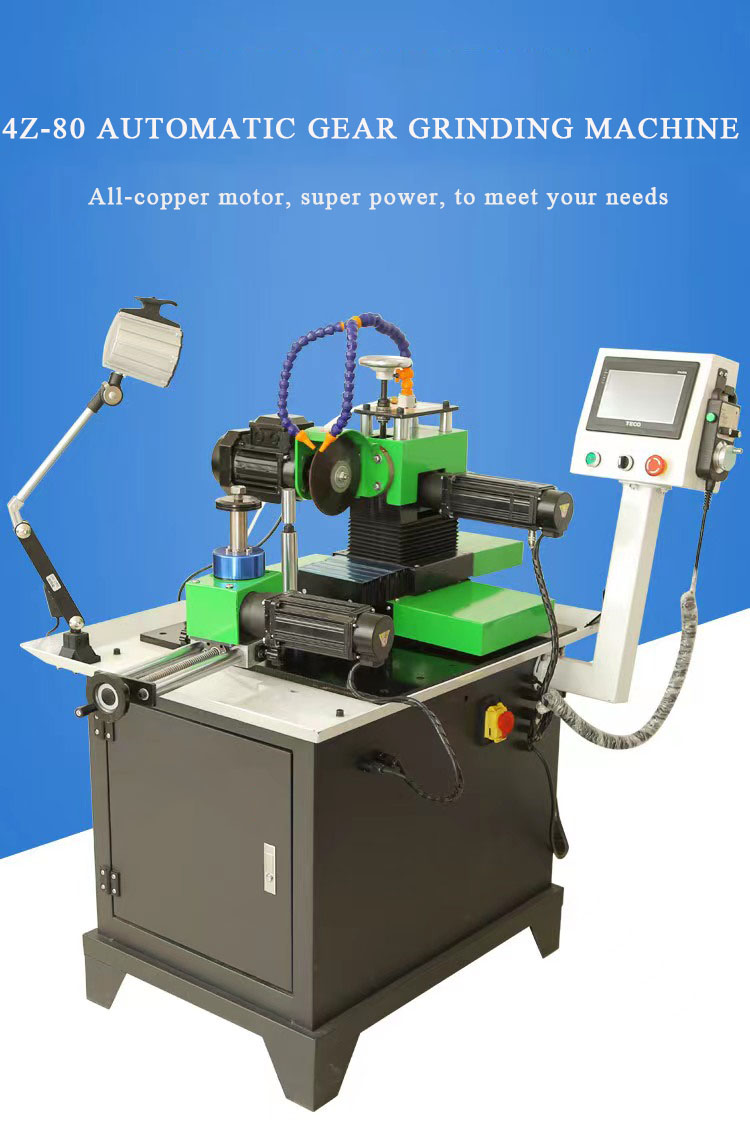

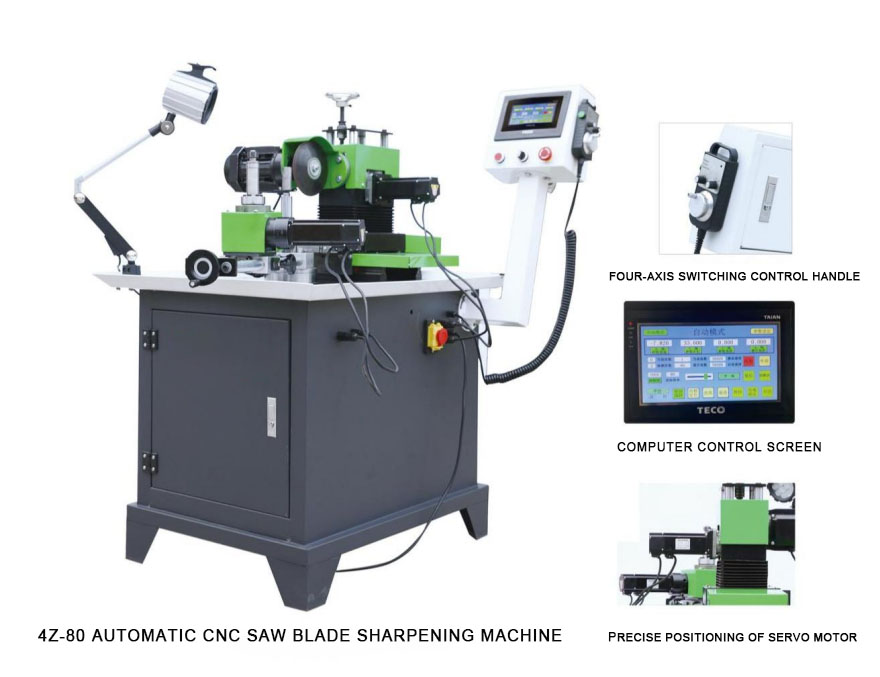

Automatic Gear Grinding Machine Saw Blade Sharpener Machine

Sales Models:Wholesale     Min Order:1 PCS    OEM:Support Customised
Color:
Size:
Availability:
Quantity:
  • Saw Blade Grinding Machine 4Z80

  • XIAPU

  The machine structure is strong and it can work on max diameter φ800mm.The specially equipped motor has a very good running speed which can have a very good co-operation with the diamond sanding wheel.The direction of the sharpening should be paralleled with the diamond sanding wheel, it is better for grinding the back teeth face.

  This machine is designed for sharpening various kinds of carbide tipped saw blades from size 100mm to 800mm.Also suitable to grind other material such as plastic, wood, aluminum alloy for different purpose like furniture manufacturing, decoration etc.

  The machine adopts pure copper motor, with strong power, good heat dissipation and low loss. Universal joint water pipe can adjust the direction and position of water flow at will. Intelligent display panel can display the value more accurately.Equipped with working lights, easy to adjust the direction, convenient operation.Stable performance, simple operation, beautiful appearance.Complete functions to meet your various needs of grinding gear.

If you have any questions about this product, please contact us promptly and we will answer your questions at the first time. Looking forward to working with you.


1.Complete functions to meet your various needs of grinding gear.

2.The machine adopts pure copper motor, with strong power, good heat dissipation and low loss.

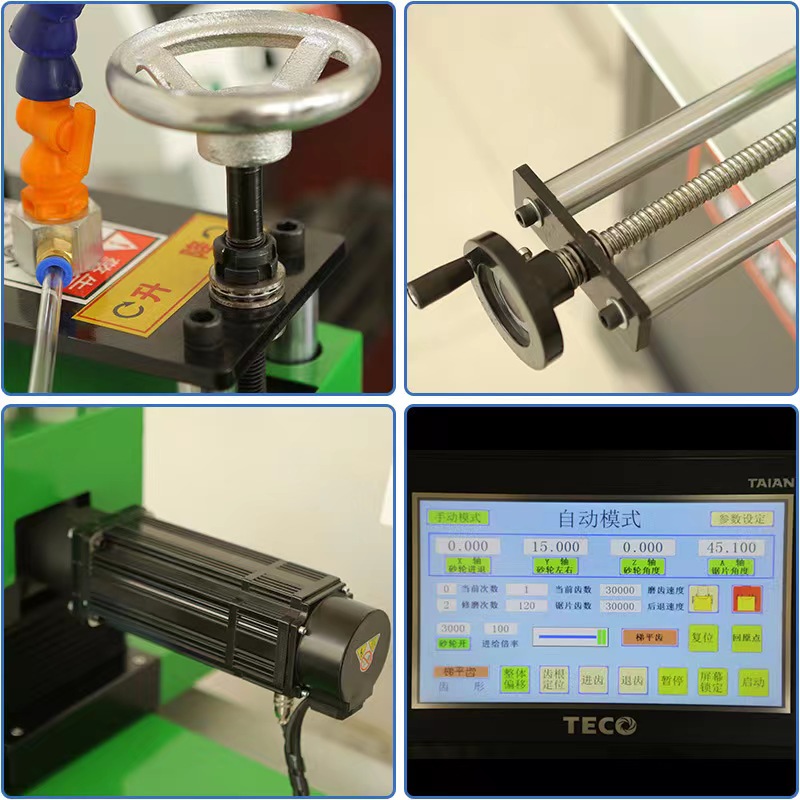

3.Universal joint water pipe can adjust the direction and position of water flow at will.

4.Intelligent display panel can display the value more accurately.

5.Equipped with working lights, easy to adjust the direction, convenient operation.

6.Stable performance, simple operation, beautiful appearance.

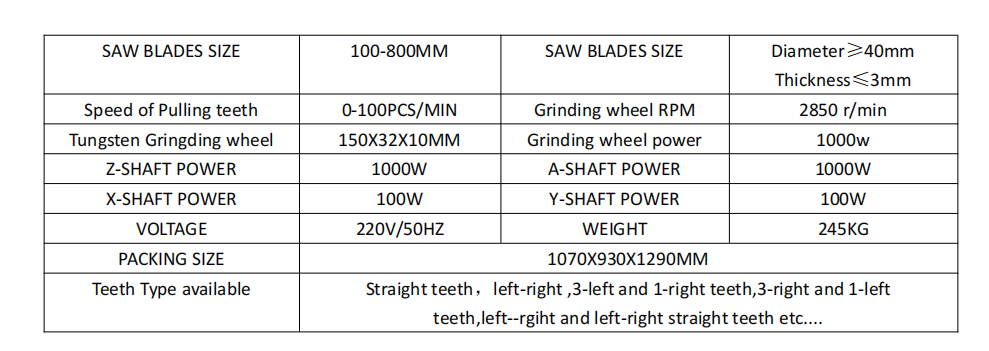

SAW BLADES SIZE

100-800MM

SAW BLADES SIZE

Diameter≥40mm Thickness≤3mm

Speed of Pulling teeth

0-100PCS/MIN

Grinding wheel RPM

2850 r/min

Tungsten Gringding wheel

150X32X10MM

Grinding wheel power

1000w

Z-SHAFT POWER

1000W

A-SHAFT POWER

1000W

X-SHAFT POWER

100W

Y-SHAFT POWER

100W

VOLTAGE

220V/50HZ

WEIGHT

245KG

PACKING SIZE

1070X930X1290MM



Teeth Type available

Straight teeth,left-right ,3-left and 1-right teeth,3-right and 1-left teeth,left--rgiht and left-right straight teeth etc
