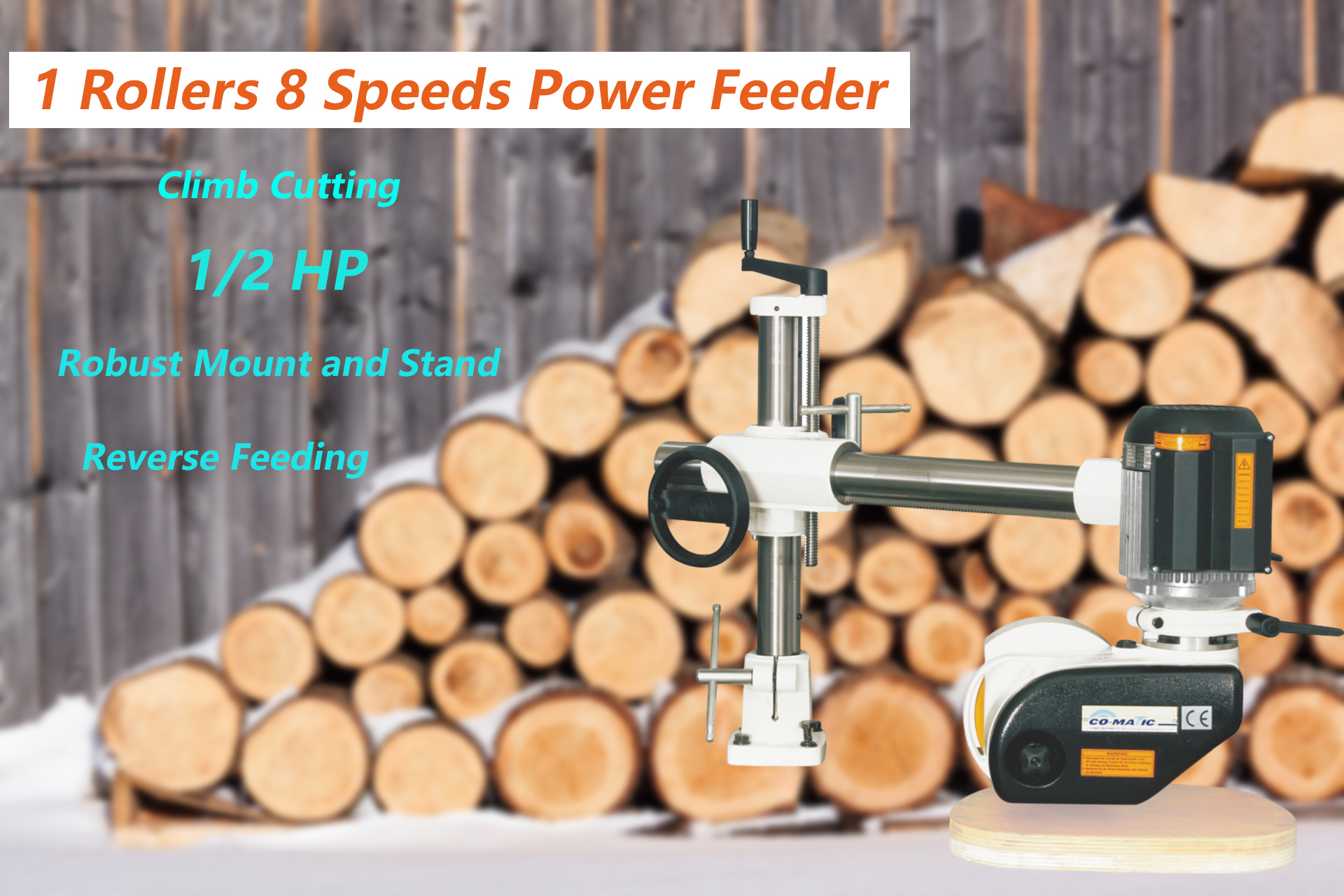

AF14-xq9

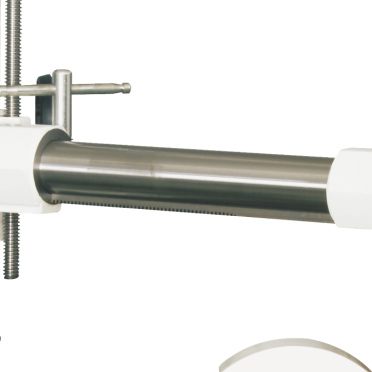

Rigid mounting and base

Our feeders are equipped with solid cast iron vertical and horizontal support columns and universal joints with "T" or "L" locking mechanism to stabilize the feeder in horizontal, vertical or inclined feeding position.

Uniform feed speed

A continuously running 1/2 HP motor ensures a constant and reliable feed speed. The actual feed speed depends on blade sharpness, knife rotation direction and workpiece characteristics.

Adjustable Speed

Speed settings can be easily adjusted to suit your requirements, and the AF14 has eight feed speeds to ensure easy and consistent feeding of semi-finished workpieces.

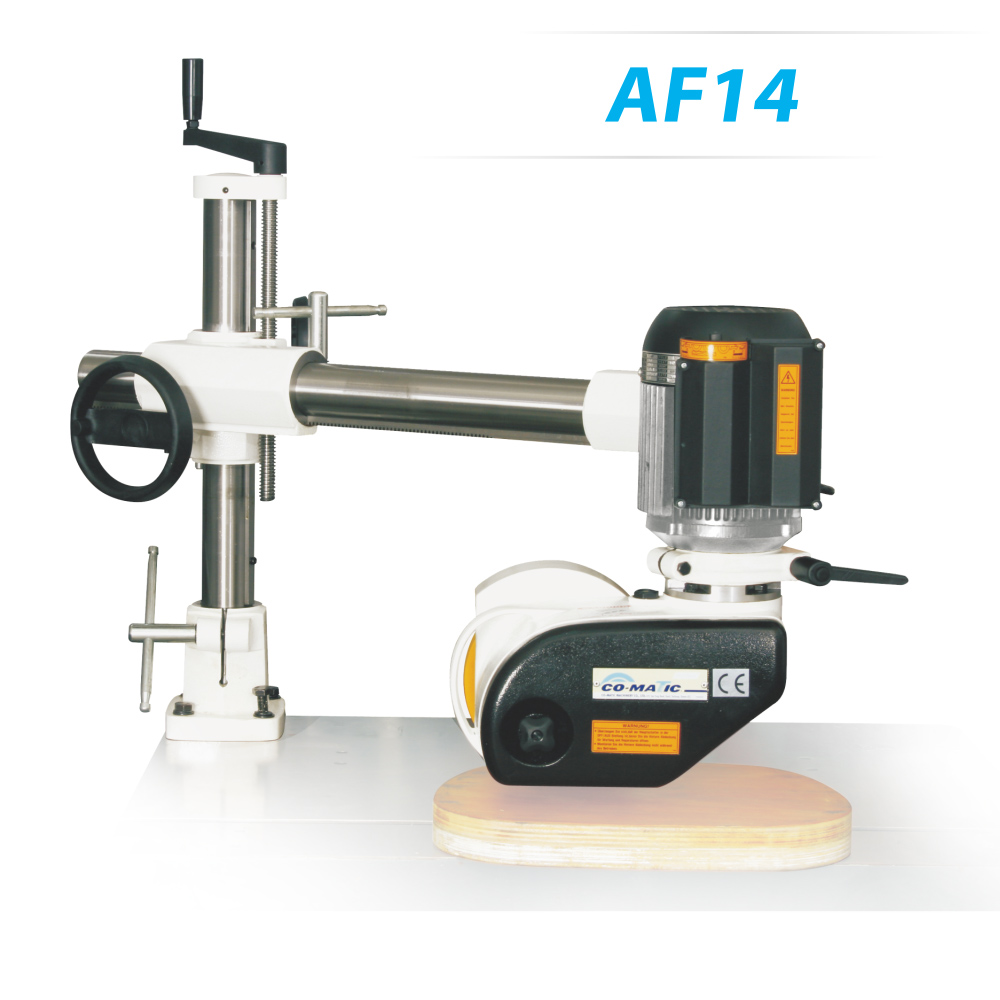

AF14-zhu01

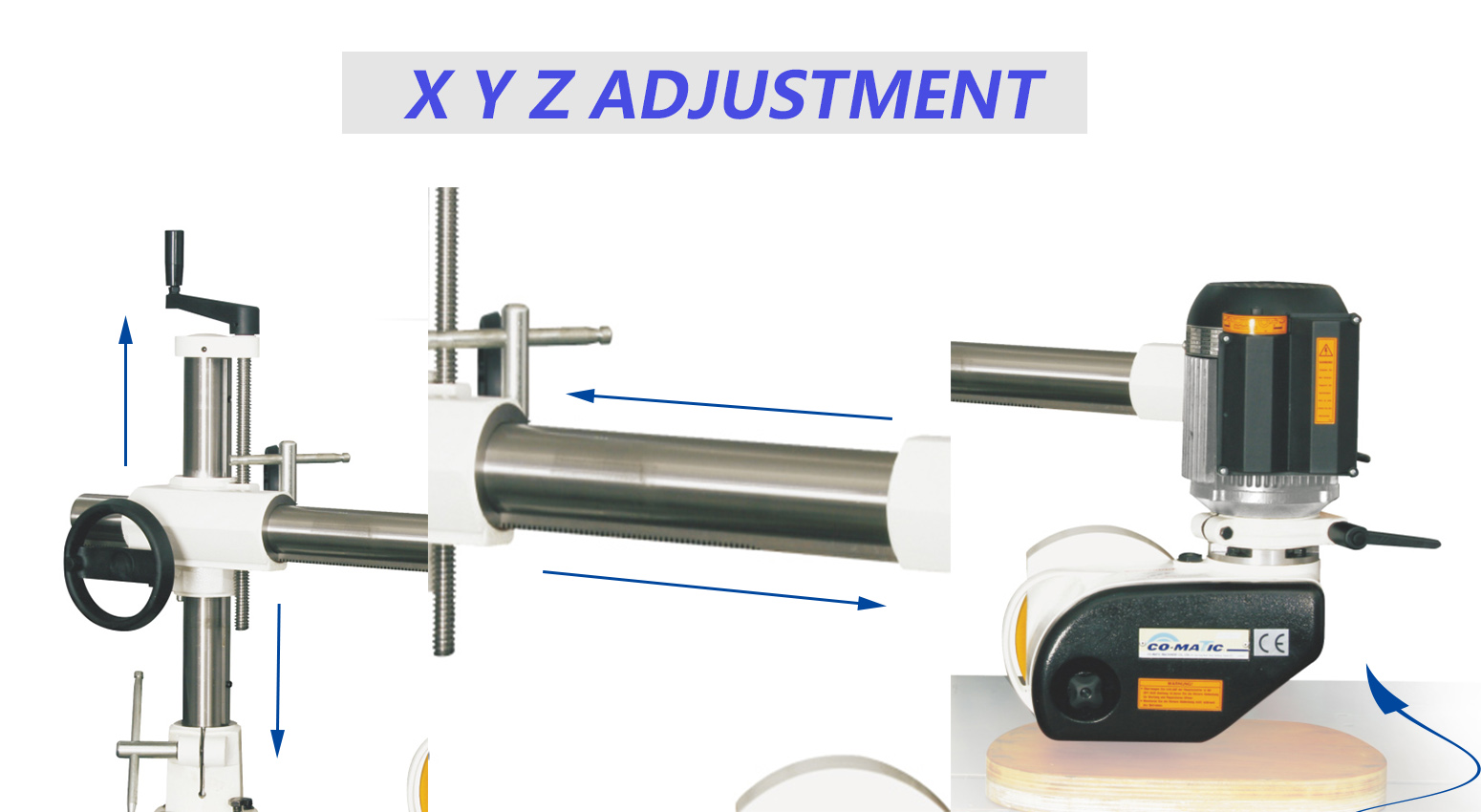

AF14-xq7

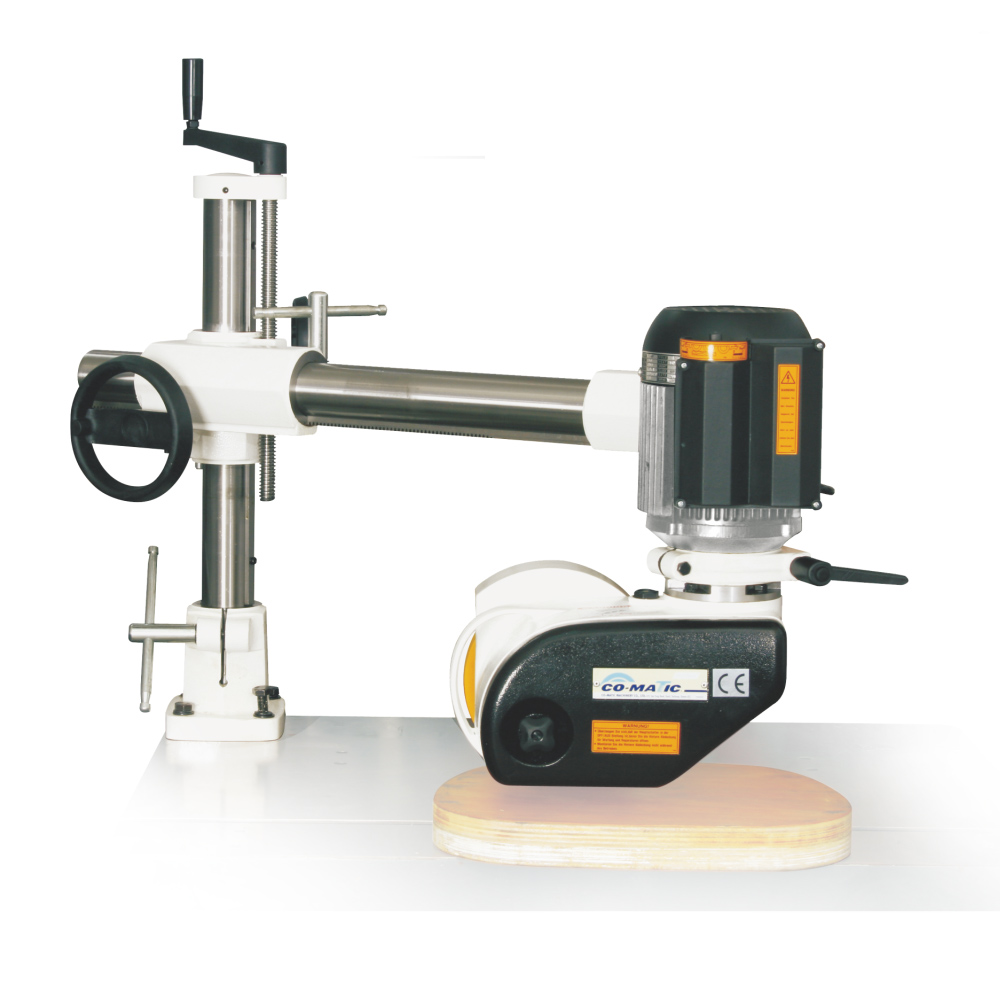

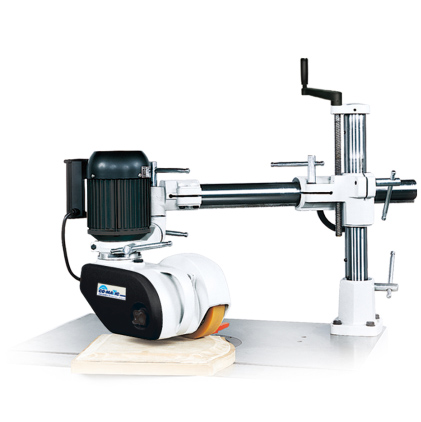

Heavy Duty Model

Our AF14 Copying Feeder is perfect to use with jointers, shapers, and table saws when copying circular shapes.

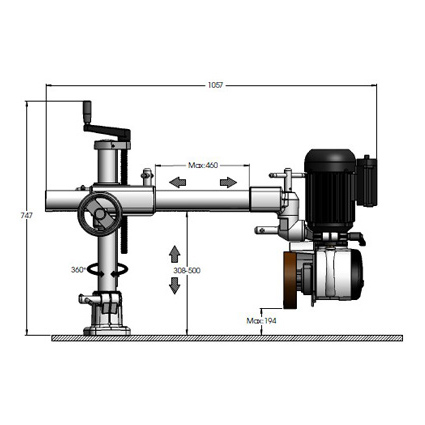

Swing 360

The ability to swing 360°, you could use it to make production table tops, chair seats, clock faces, and more!

Feed Speed Control

Forward/reverse feed.With a range of eight speeds and an interchangeable gear set, the AF14 Copy Feeder provides consistency for your stock feeding. Reverse feed is available via a selection switch.

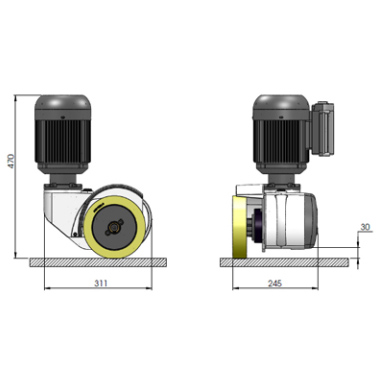

Roller Suspension

Roller is spring loaded to maintain a constant pressure, with roller suspension up to 25mm (1").

Model	Automatic Copying Power Feeder Machine -AF14
Feeding Speeds	(50Hz)2/2.5/4/5/7/9/14/18 M/min. (60HZ)2.5/3/5/6/7.5/10/15/20 M/min.
Motor	1/2 HP
Rated voltage	380 V
Roller	1 Roller
Roller Suspension	25 mm
Net Weight(Feeder+Stand)	39 + 33 Kgs
Gross Weight(Feeder+Stand)	41 + 35 Kgs
Carton for Body(Feeder)	540 x 315 x 535 mm
Carton for Stand(Stand)	750 x 315 x 290 mm
Capacity of 20’Container	168 Sets
Control Method	Positive, reverse, fast and slow variable polarity speed regulation.
Usage	Vertical Shaft Feeder,Timber Push Presses.

Automatic 1 Roller 8 Speed Copying Power Feeder Woodworking Machine Wood Machine
