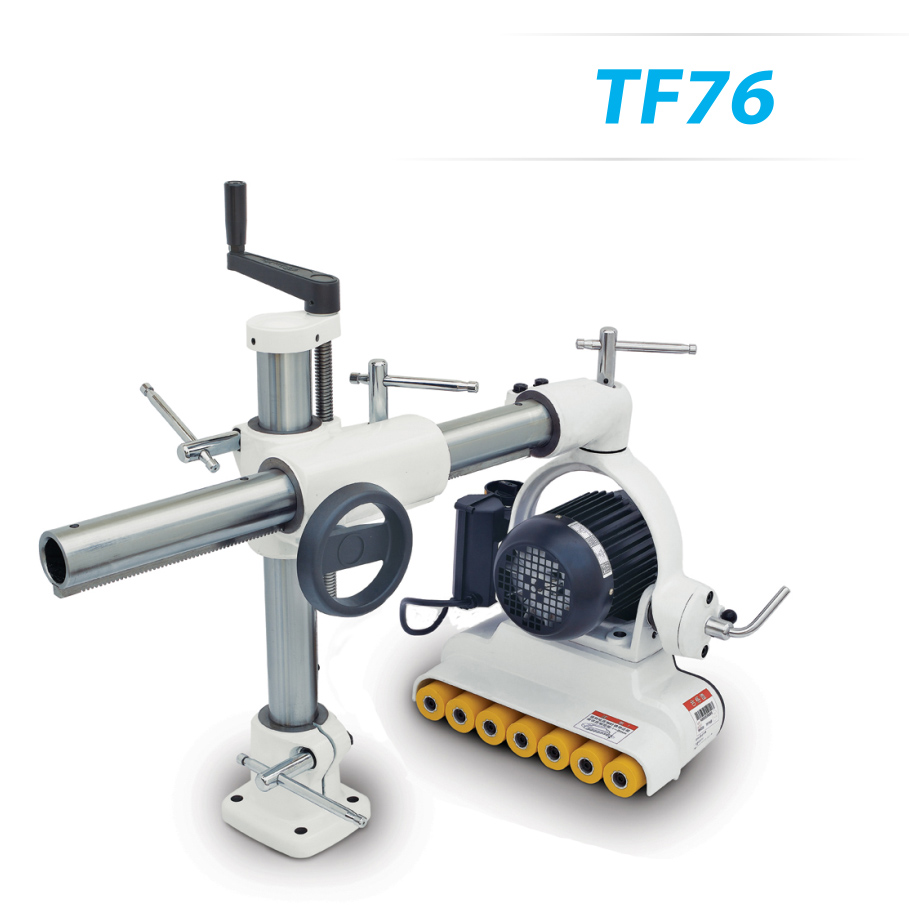

TF76
XIAPU
Power Feeder Power Feeder 1/2 HP Table Saw Feeder 7 Rollers 6 Speed
This feeder is mainly used to feed woodworking machines used as spindle molding machines. It avoids in the operation of the machine tool and achieves high efficiency. Heavy duty, 7 rollers/6 speeds, easy changeover, 90°/180° automatic locking The whole series is equipped with automatic angle adjustment.
This feed mechanism features digital control and seven closely spaced rollers for precise, close contact as the workpiece passes through the table saw or gear and chopper. A universal pivot adjusts the feed path and height for different sized workpieces. Simply turn the knob to change the direction of rotation.

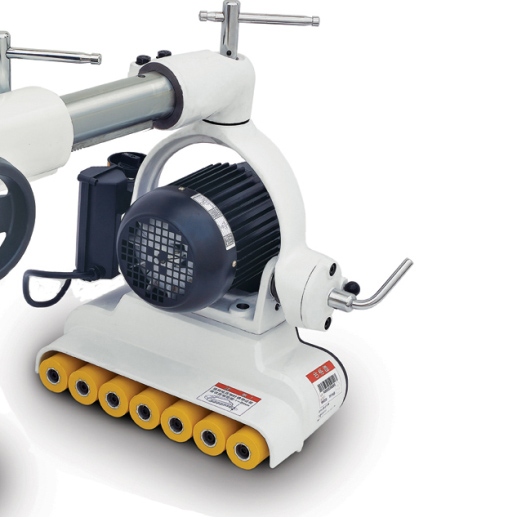

Seven polyethylene rollers are non-skid. They can be easily replaced and reinstalled if worn or damaged.
The rollers exert even pressure, stabilizing the workpiece and preventing sudden movements that could damage the finished product.
Power Feeder Power Feeder 1/2 HP Table Saw Feeder 7 Rollers 6 Speed
This feeder is mainly used to feed woodworking machines used as spindle molding machines. It avoids in the operation of the machine tool and achieves high efficiency. Heavy duty, 7 rollers/6 speeds, easy changeover, 90°/180° automatic locking The whole series is equipped with automatic angle adjustment.
This feed mechanism features digital control and seven closely spaced rollers for precise, close contact as the workpiece passes through the table saw or gear and chopper. A universal pivot adjusts the feed path and height for different sized workpieces. Simply turn the knob to change the direction of rotation.
Seven polyethylene rollers are non-skid. They can be easily replaced and reinstalled if worn or damaged.
The rollers exert even pressure, stabilizing the workpiece and preventing sudden movements that could damage the finished product.
1.Forward/reverse feed
2.Multiple feed speeds

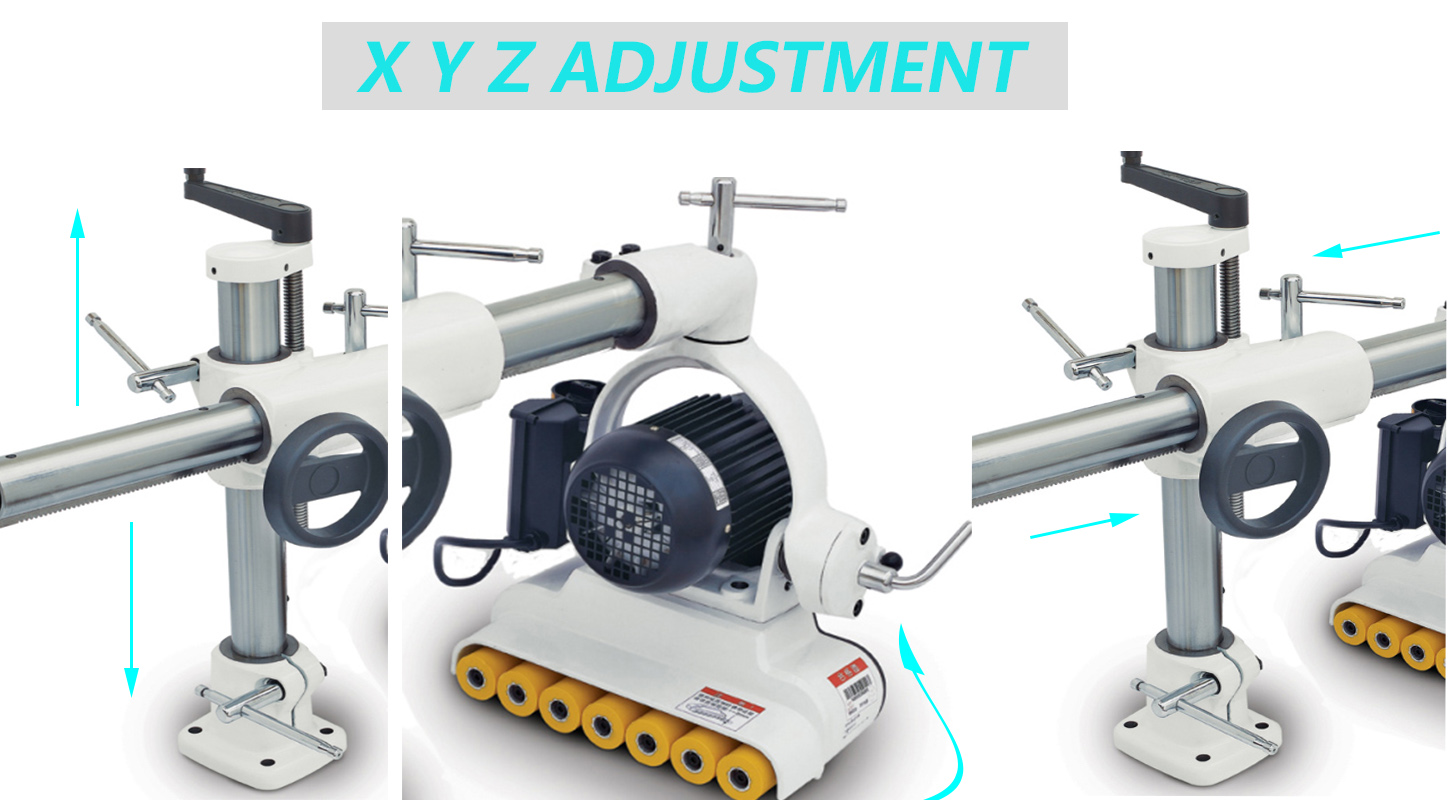

3.X-, Y-, Z-axis adjustment
4.Rollers are spring-tensioned
5.Heavy-duty gear reduction with hardened gears
6.Universal positioning with handle locks

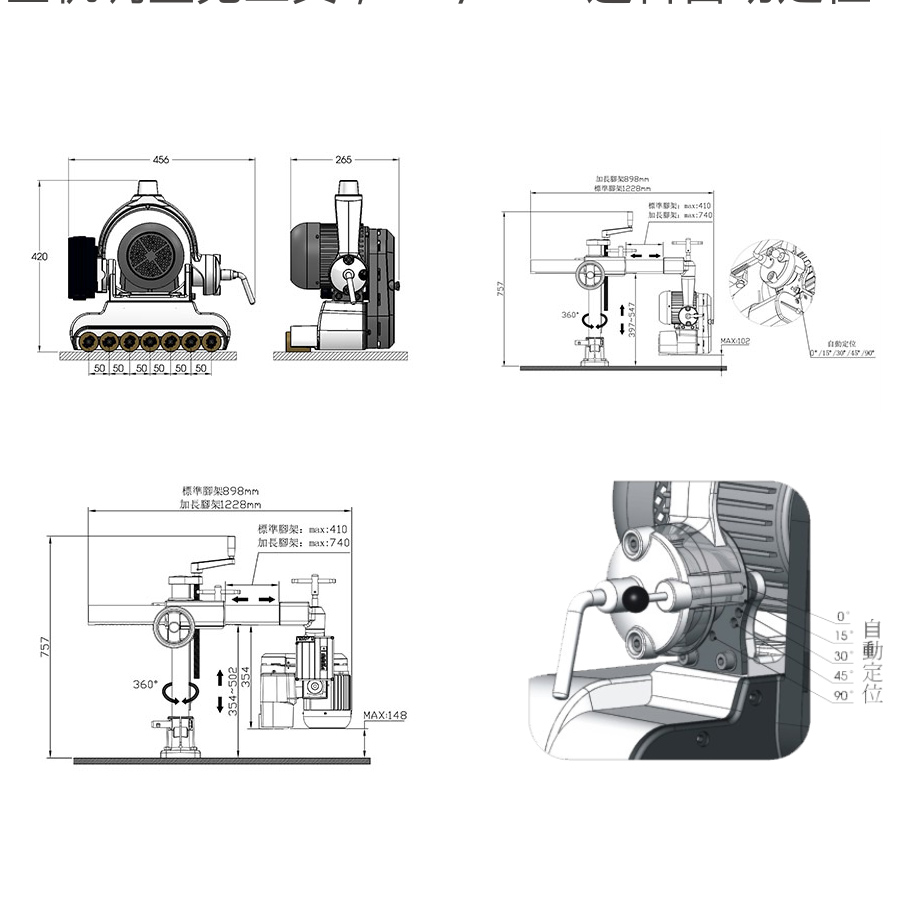

7.Automatic Angle Positioning Device
8.Specialized for short stock
9.Tool-less adjustment of the entire machine, 90°/180° automatic positioning of the feeder
1.Forward/reverse feed
2.Multiple feed speeds
3.X-, Y-, Z-axis adjustment
4.Rollers are spring-tensioned
5.Heavy-duty gear reduction with hardened gears
6.Universal positioning with handle locks
7.Automatic Angle Positioning Device
8.Specialized for short stock
9.Tool-less adjustment of the entire machine, 90°/180° automatic positioning of the feeder
Model | 7 Rollers 6 Speeds Power Feeder |
Feeding Speeds | (50Hz)8/9/12/16/18/23 M/min. (60HZ)9.5/10/14/20/28 M/min. |
Motor | 1/2 HP |
Rated Voltage | 380 V |
Roller Size | Φ48 x W60mm x 7 |
Roller Suspension | 0 |
Maximum processing length | 350 mm |
Maximum processing thickness | 50 mm |
Maximum processing width | 120 mm |
Net Weight(Feeder+Stand) | 38 + 32 Kgs |
Gross Weight(Feeder+Stand) | 40 + 34 Kgs |
Carton for Body(Feeder) | 620 x 515 x 350 mm |
Carton for Stand(Stand) | 750 x 315 x 290 mm |
Capacity of 20’Container | 144 Sets |
Control Method | Automatically.Positive, reverse, fast and slow variable polarity speed regulation. |
Usage | Vertical milling auxiliary feed |
