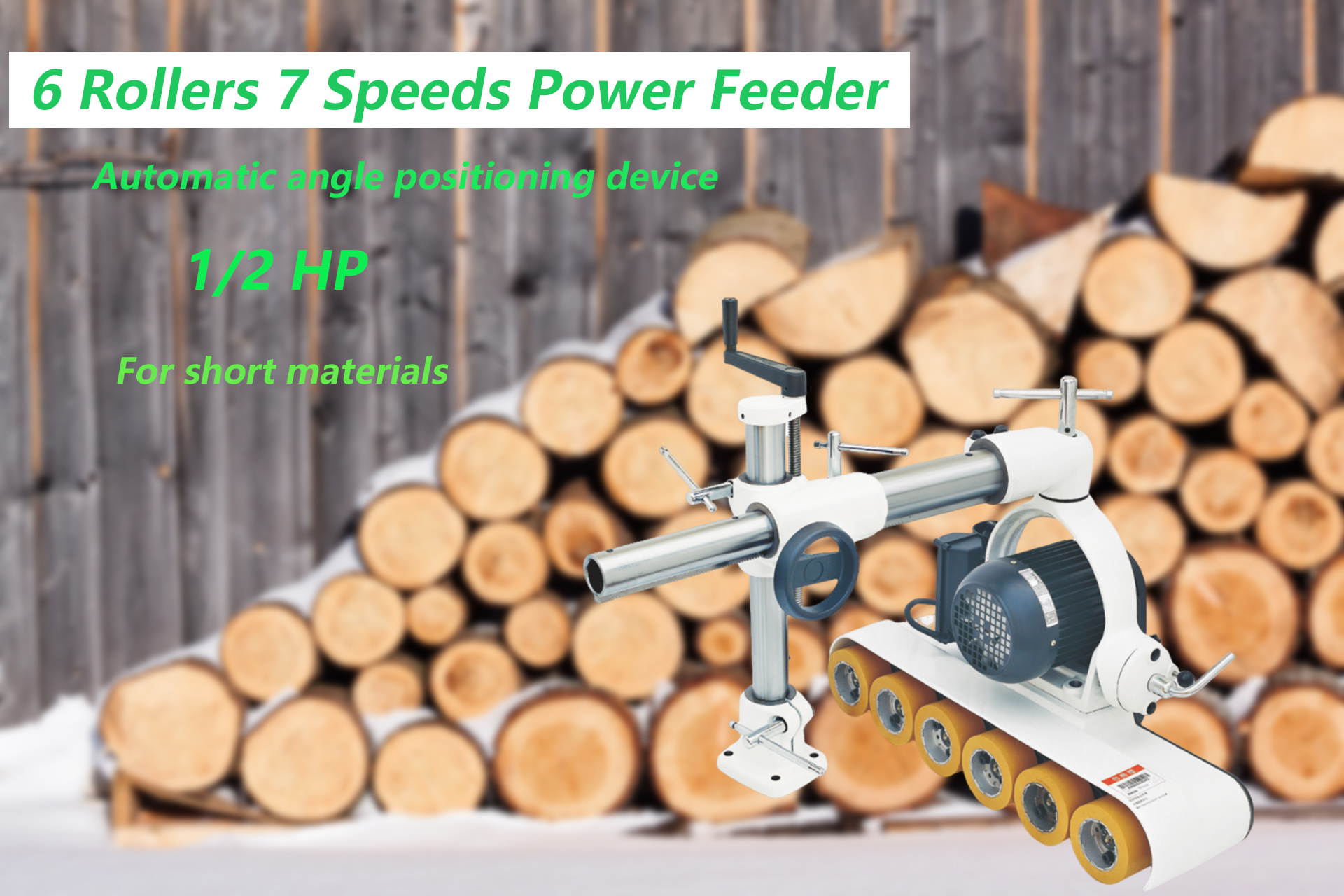

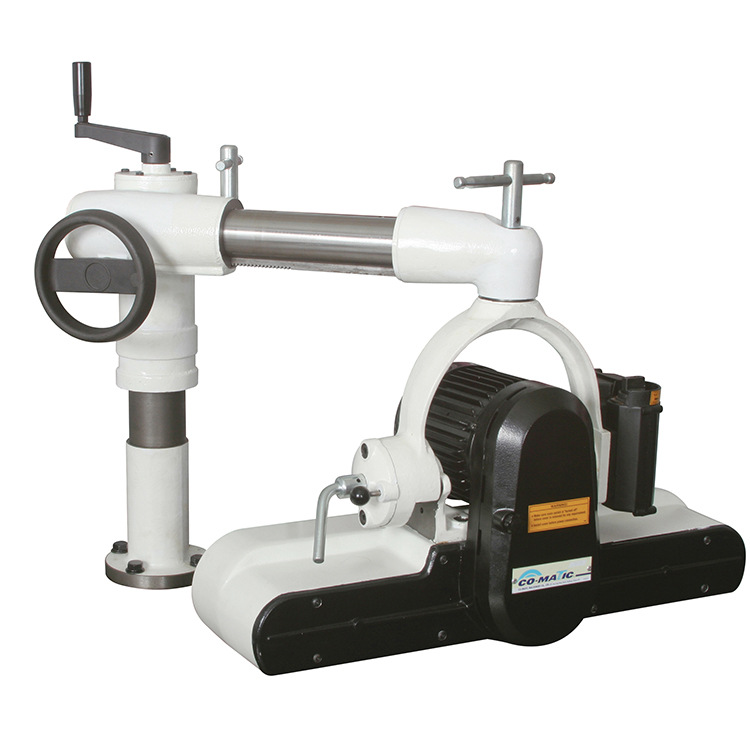

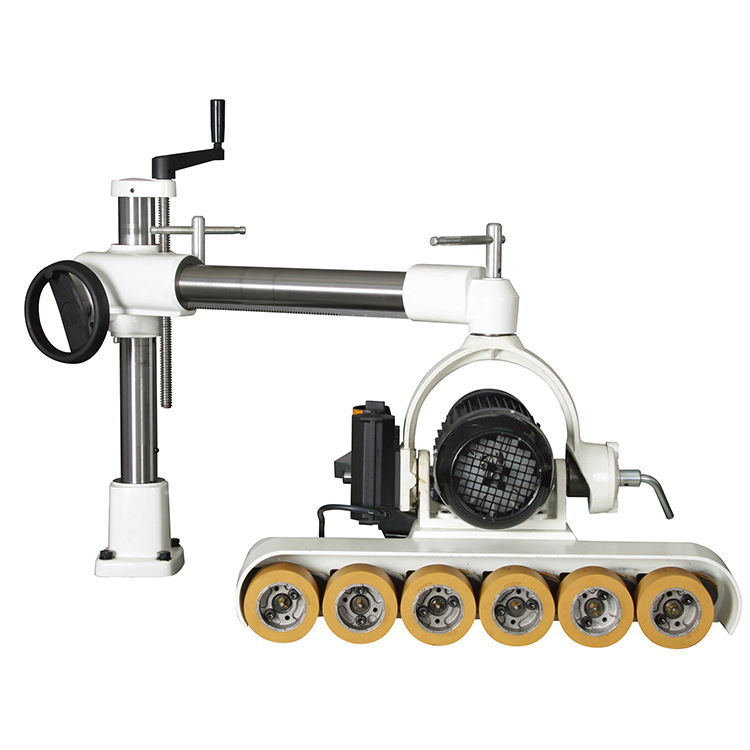

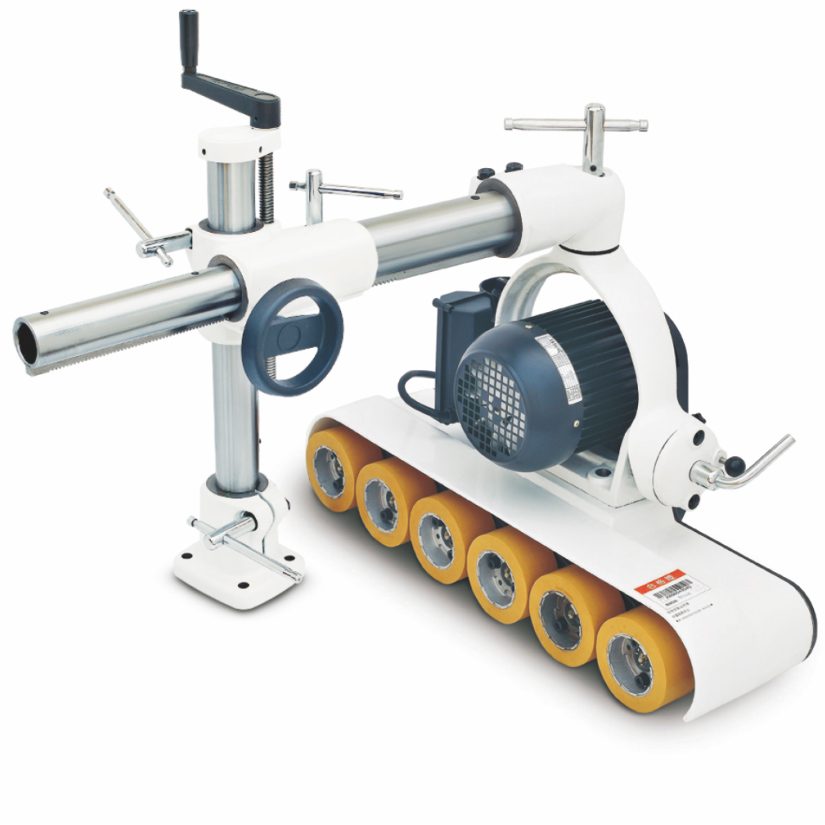

Model | 6 Rollers 7 Speeds Power Feeder |
Feeding Speeds | (50Hz)3.5/5/6/7/8/12/16 M/min. (60HZ)4/7/8/9.5/14/19 M/min. |
Motor | 1/2 HP |
Rated Voltage | 380 V |
Roller Size | Φ100 x W50mm x 6 |
Roller Suspension | 18 mm |
Maximum processing length | 1200 mm |
Maximum processing thickness | 50 mm |
Maximum processing width | 300 mm |
Net Weight(Feeder+Stand) | 43 + 32 Kgs |
Gross Weight(Feeder+Stand) | 45 + 34 Kgs |
Carton for Body(Feeder) | 776 x 530 x 375 mm |
Carton for Stand(Stand) | 750 x 315 x 290 mm |
Capacity of 20’Container | 100 Sets |
Control Method | Automatically.Positive, reverse, fast and slow variable polarity speed regulation. |
Usage | Vertical milling auxiliary feed |
