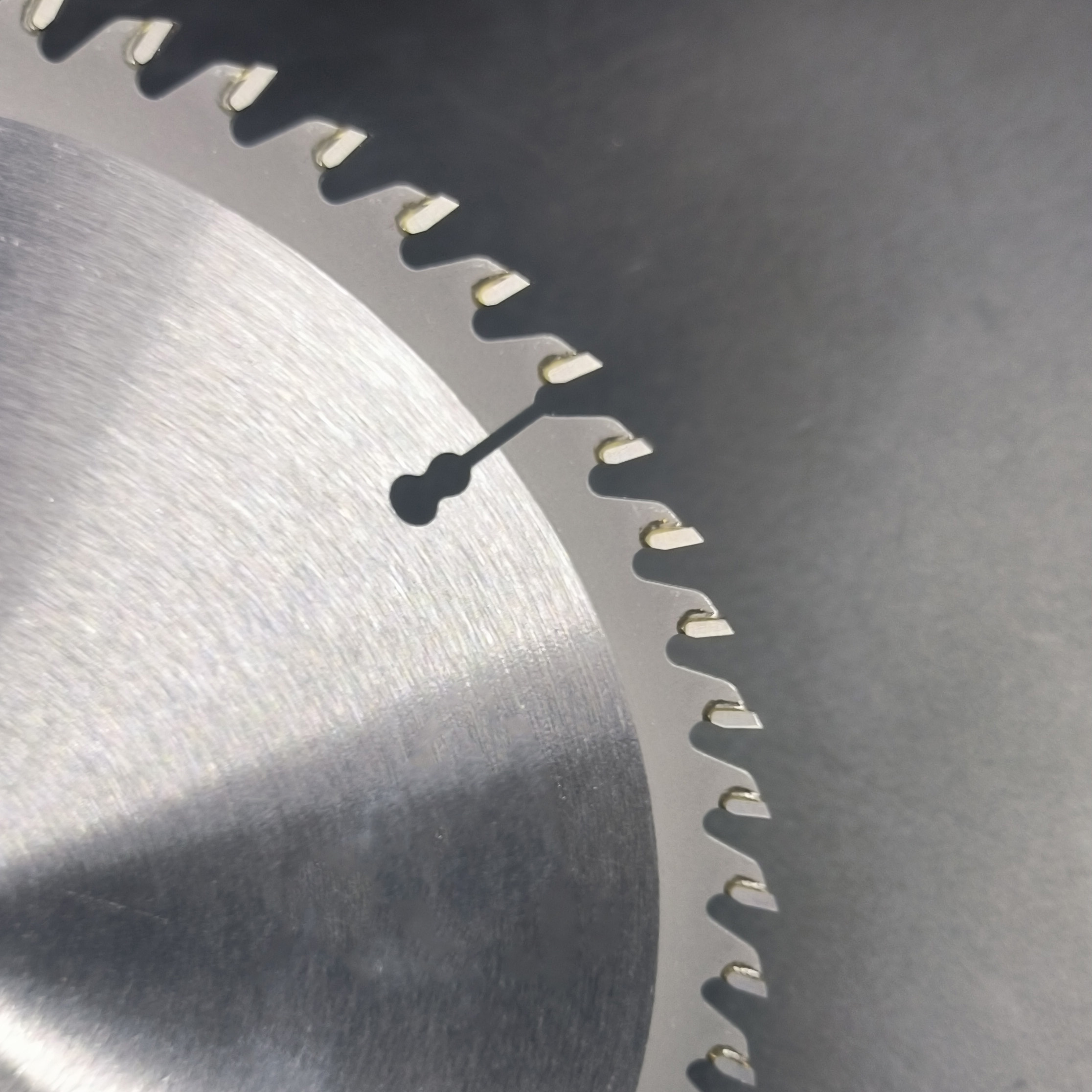

7” TCT 60 Teeth Wood Carbide Tipped Saw Blade Circular Cutting Woods Saw Blades

Body Material:65 MN Steel
Material:Carbide Tipped
Size:180 mm(7")
Teeth:60 Teeth
Teeth Type:ATB Teeth
Size:
Availability:
Quantity:
  • D180 mm*d25 mm * 60Teeth

quanjiafu

- Product Design

   The saw teeth are brazed, and the solder used between the blade and the base material contains 49% silver, which greatly improves the life of the blade.

   The teeth of the saw have an angled ATB (Alternating Top Bevel) design, in which the teeth are angled to nick the surface of the wood before cutting and cleanly cut through the wood fibers before subsequent teeth remove the chips. This results in a smoother cut and much less risk of chipping the wood surface.

- Wide range of uses

    It is designed as a general cross-cutting saw blade for cross-cutting softwoods, hardwoods, plywoods, chipboards, multilayers, panels, MDF, plated and plated panels, laminated and double-laminated plastics and fibreglass.

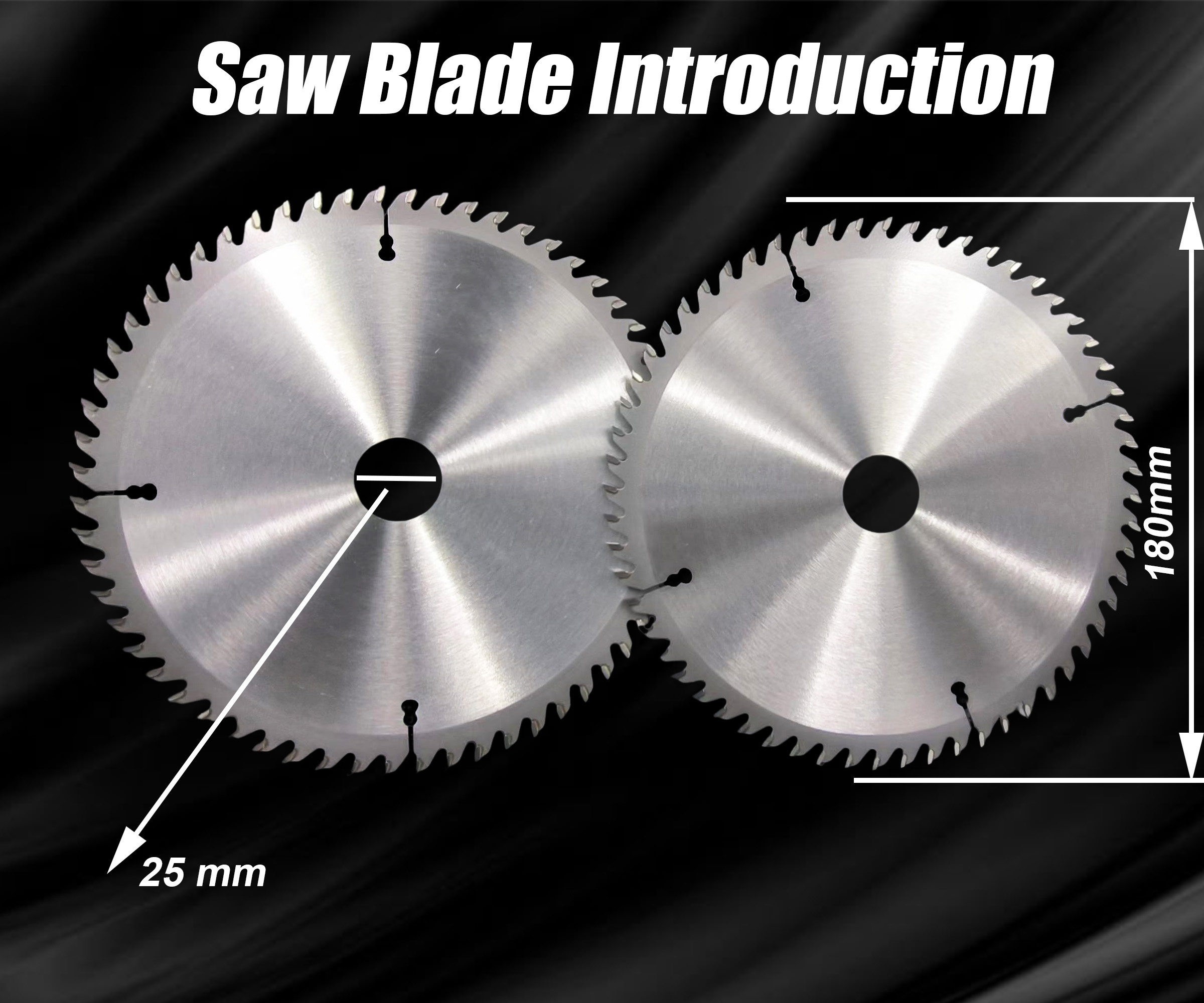

sawblades-application2

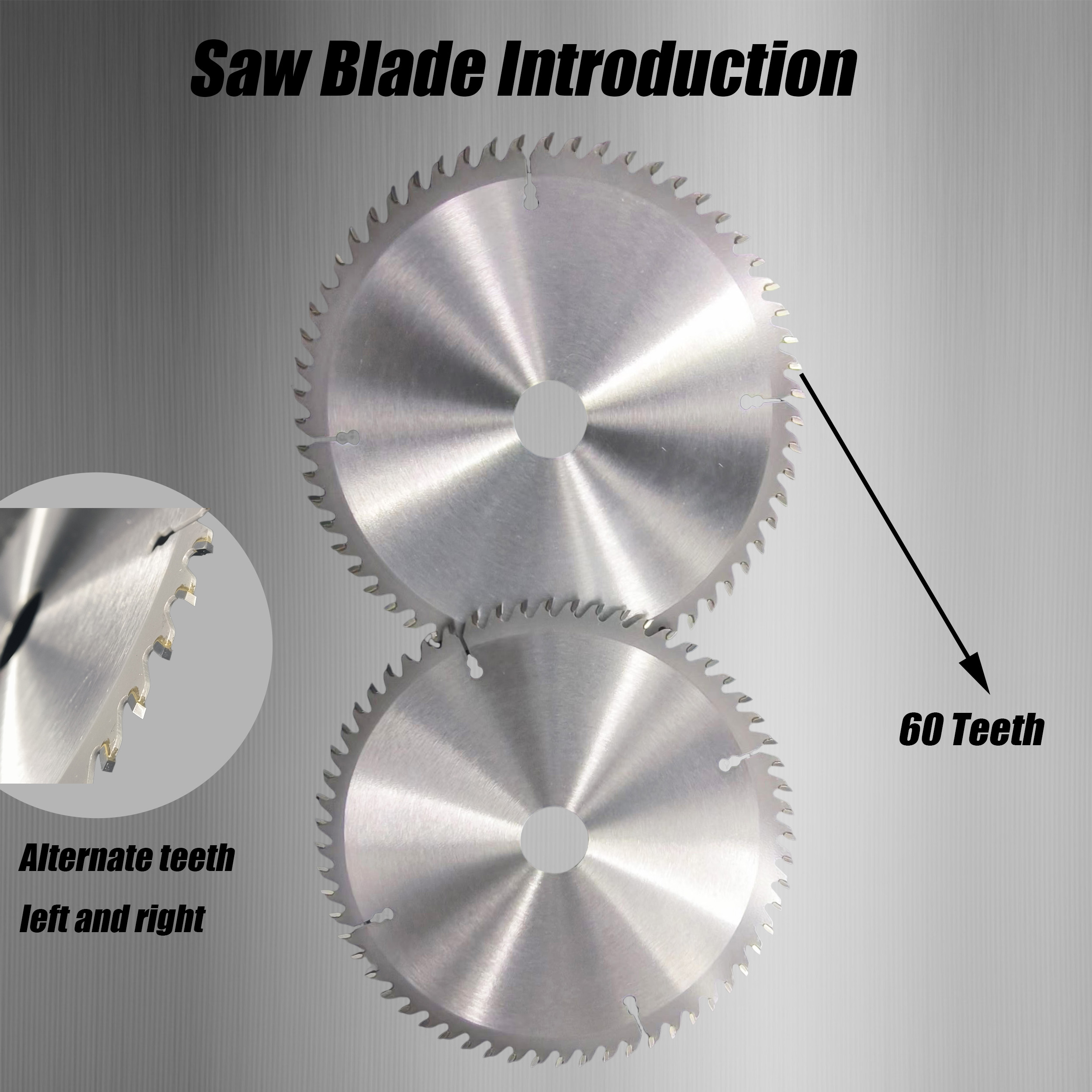

sawblades-application1

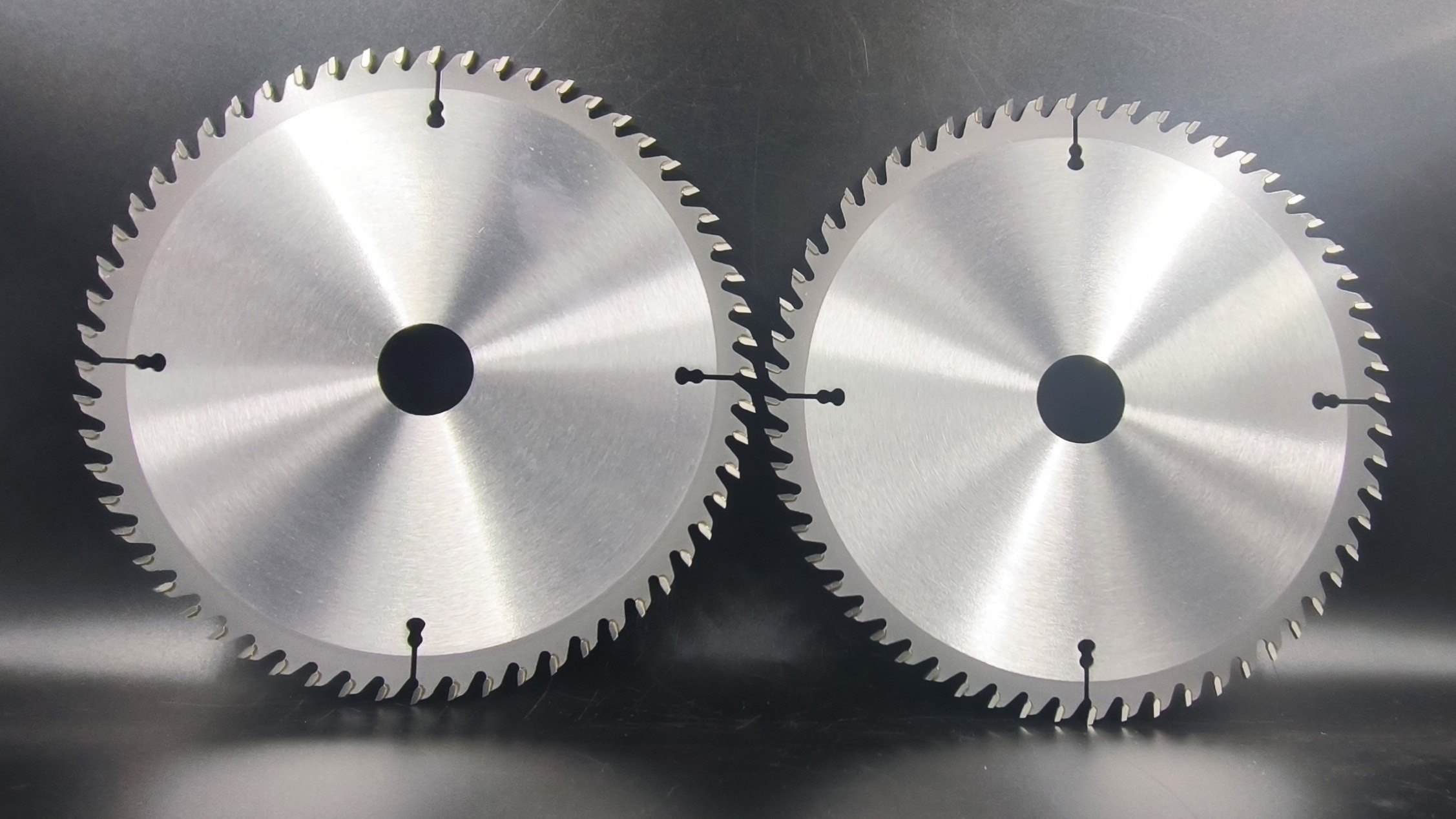

xq4

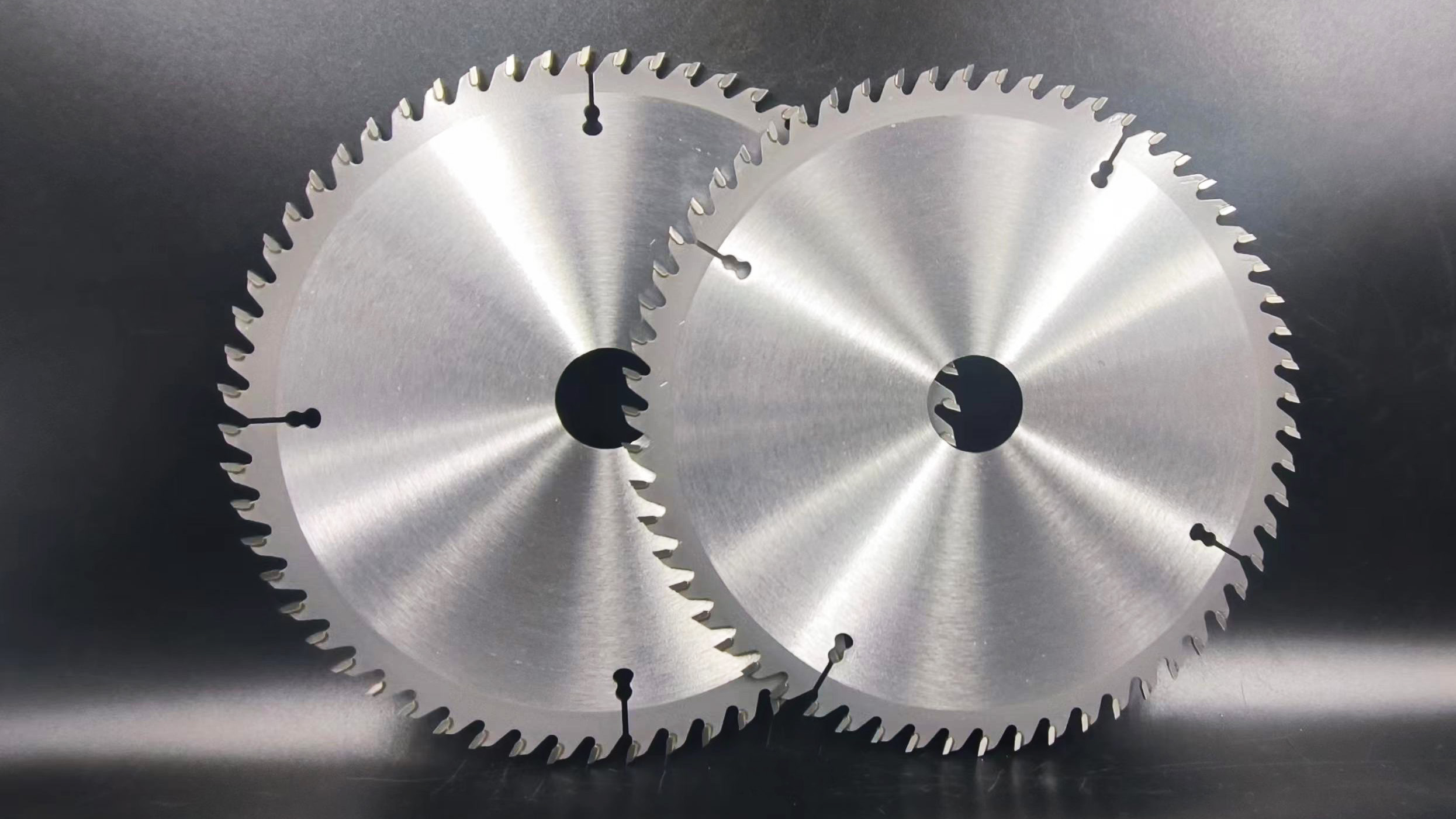

xq2

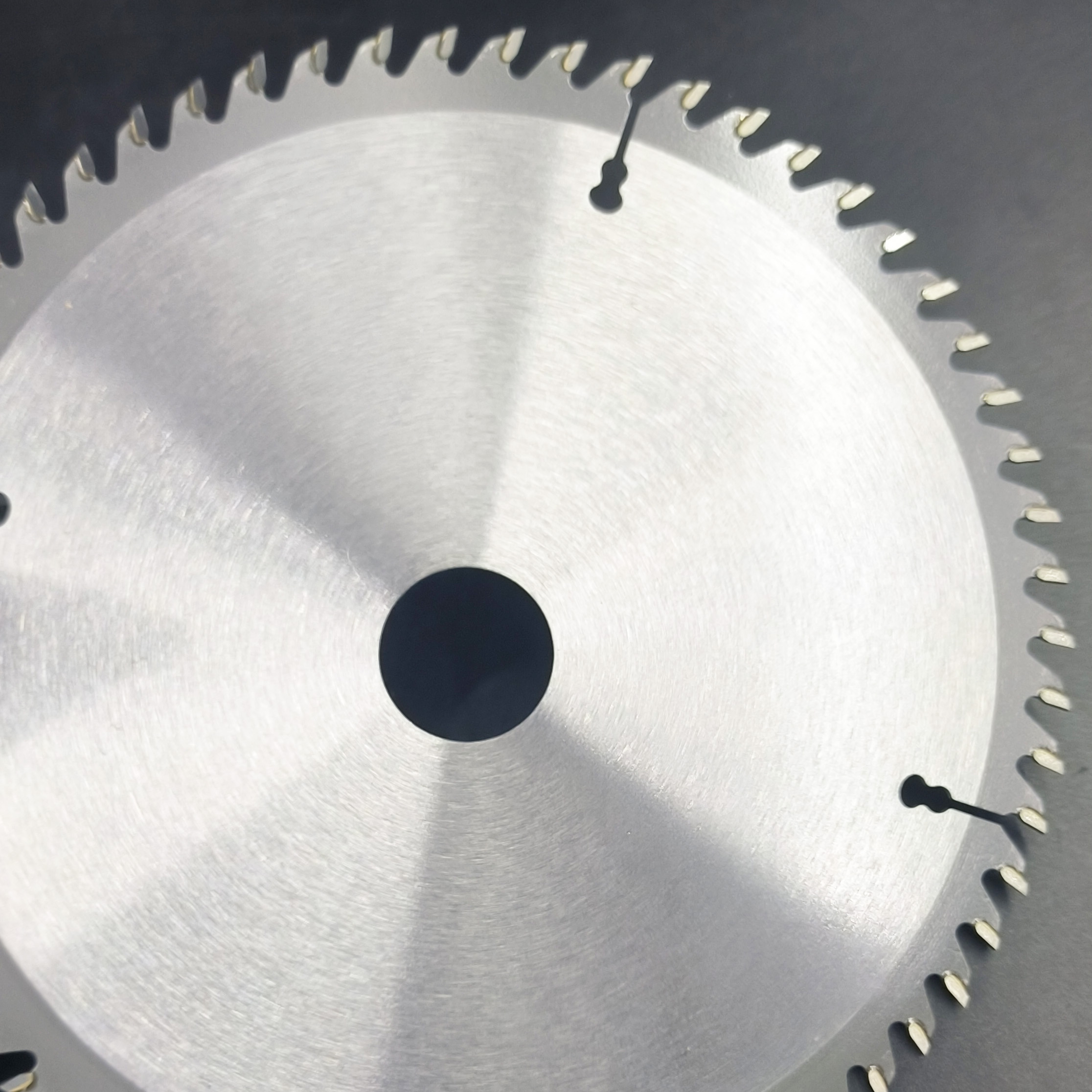

zhu11

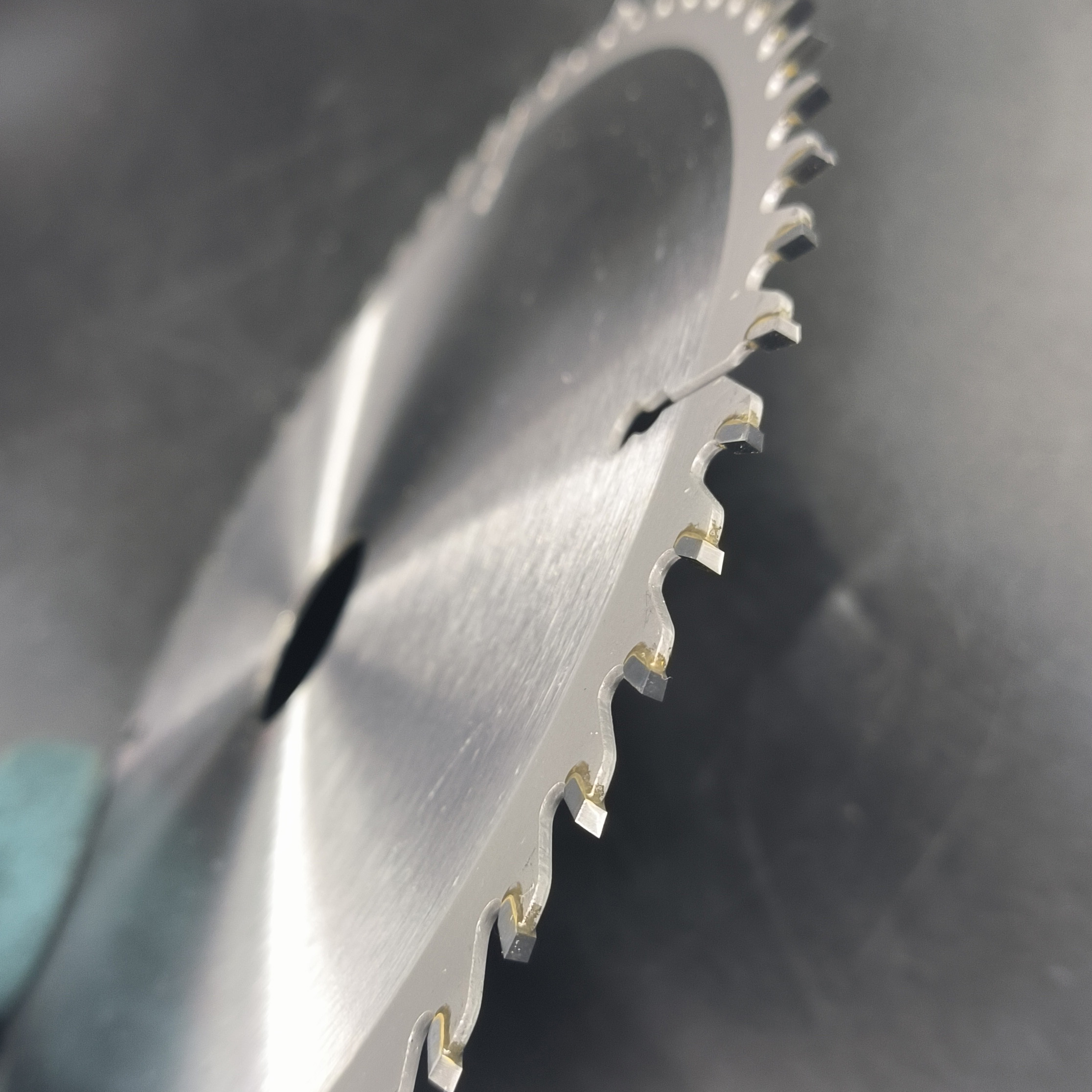

zhu09

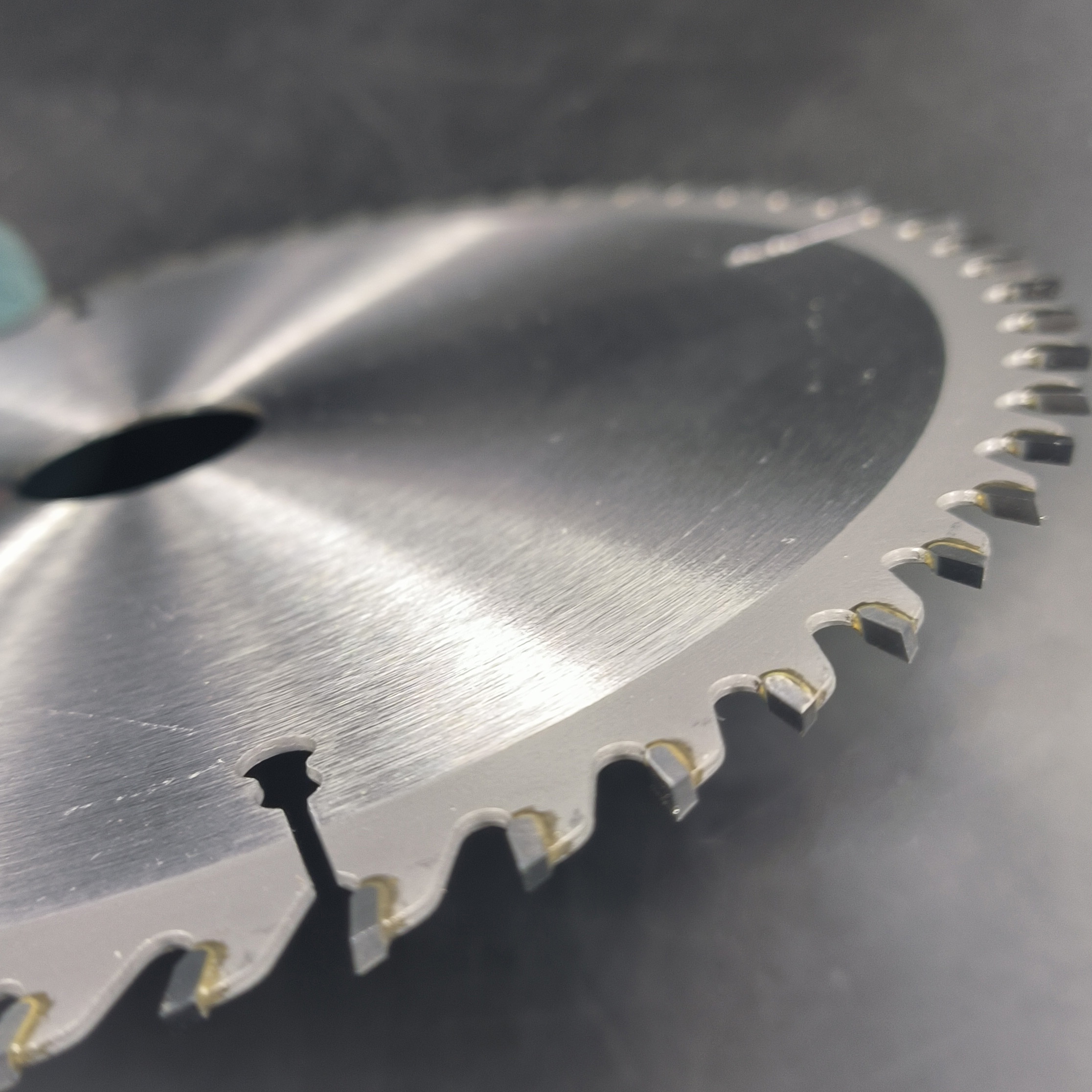

zhu08

Product Name

7 inch Circular Saw Blade for Wood Carbide Tipped

Diameter

180mm(7")

Hole Diameter

25mm(0.8 inch)

Teeth

60 Teeth

Teeth Material

Tungsten Carbide

Body Material

65Mn Steel

Teeth Type

ATB Teeth(Other Teeth are available)

Features

Durable, High Perfomance, Robustness,Excellent Strength.

Usage

Hard and soft wood cutting,Cutting wood, solid wood, composite board.


Package

One piece in one PVC double blister, paper box.


  • Sharp and durable edge, impact resistance, bending resistance.

  • Heat treatment and quenching process, cutting sharp, smooth cut, no burr.

  • Excellent wear and heat resistance.

  • Proffesional quality hardened and tempered Tungsten Carbide tipped circular saw blade for hard and soft wood cutting.Mainly used for cutting wood, solid wood, composite board.
