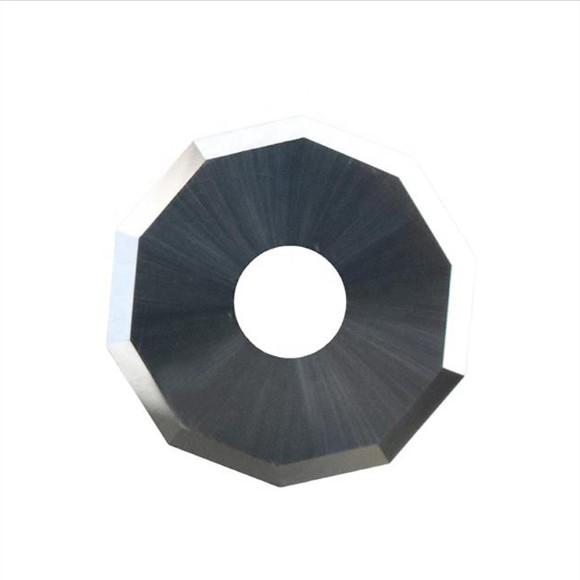

25 * 8 * 0.63 mm-10 Edge rotary cutter blades
XIAPU
Tungsten carbide disc cutter is special cutting instrument which utilizes abrasive powders and highspeed, vibratory motion to cut discs, holes, cylinders, squares and other shapes from hard, brittlematerials. Tungsten carbide cutter blade is widely used to cut paper, tile, tobacco, PCB board.aluminum, stainless steel, copper and other metals.
Accurate selection of raw material, strict and skilled production technology , we are committed to bring you blade more sharp.
Blade is made of ultra-fine particle cemented carbide, through HIP high temperature pressure, blade sharp and wear-resistant, the edge is enlarged without gap. Highest sharpness and precision,Each blade has an extremely long life. Increased productivity due to increased cutting speed and reduced number of blade changes. The trimming is clean and does not form raw edge.
You will find various blades here for different XIAPU Cutter heads .They are ideal to cut leather , carton boards, doubling plate.
OEM Service:
We are a strong manufacturer of blades. This product also supports other customized other models. If you have OEM service needs, you can click this link to consult us.We will produce and manufacture the product according to your requirements. Welcome to consult us.
Tungsten carbide disc cutter is special cutting instrument which utilizes abrasive powders and highspeed, vibratory motion to cut discs, holes, cylinders, squares and other shapes from hard, brittlematerials. Tungsten carbide cutter blade is widely used to cut paper, tile, tobacco, PCB board.aluminum, stainless steel, copper and other metals.
Accurate selection of raw material, strict and skilled production technology , we are committed to bring you blade more sharp.
Blade is made of ultra-fine particle cemented carbide, through HIP high temperature pressure, blade sharp and wear-resistant, the edge is enlarged without gap. Highest sharpness and precision,Each blade has an extremely long life. Increased productivity due to increased cutting speed and reduced number of blade changes. The trimming is clean and does not form raw edge.
You will find various blades here for different XIAPU Cutter heads .They are ideal to cut leather , carton boards, doubling plate.
OEM Service:
We are a strong manufacturer of blades. This product also supports other customized other models. If you have OEM service needs, you can click this link to consult us.We will produce and manufacture the product according to your requirements. Welcome to consult us.
Features
1. 10 production processes to go through for every individual knife.
2. Extremely precise cuts and high stability ensure an excellent cutting finish.
3. Assuring the ultimate in life time,Low levels of waste/scrap.
4. Fewer blade changes and higher capacity utilization result in greater productivity,Lower yearly knife consumption costs.
5. Submicron-grain carbide guarantees durability and excellent wear resistance.
6. High precision, high intensity, excellent hardness,small thermal deformation,High and consistent quality.
7. Matched to their applications,Reward customers with high Productivity.
Features
1. 10 production processes to go through for every individual knife.
2. Extremely precise cuts and high stability ensure an excellent cutting finish.
3. Assuring the ultimate in life time,Low levels of waste/scrap.
4. Fewer blade changes and higher capacity utilization result in greater productivity,Lower yearly knife consumption costs.
5. Submicron-grain carbide guarantees durability and excellent wear resistance.
6. High precision, high intensity, excellent hardness,small thermal deformation,High and consistent quality.
7. Matched to their applications,Reward customers with high Productivity.
Product Name | Carbide Rotary Blade |
Material | 100% Virgin Tungsten Carbide |
Size | 25 * 8 * 0.63 mm |
Thickness | 0.63 mm |
Hardness | 91.5-93.5 |
Advantage | High and consistent quality,Low levels of waste/scra,Extremely precise cuts and high stability ensure an excellent cutting finish. |
Cutting Material | Fabric,Leather,EVA Foam Vinyl,Faux Fur,Composite Materials,And more.Paper, tile, tobacco, PCB board.aluminum, stainless steel, copper and other metals and so on. |
Specification

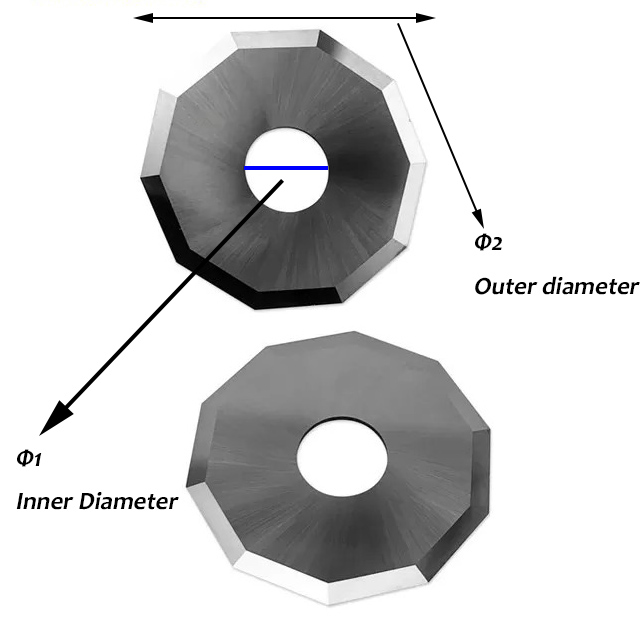

Common Size(mm) | Outer diameter(mm) | Inner Diameter(mm) | Thickness(mm) | Angle |
Φ22xΦ8x0.63 | 22 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ25xΦ8x0.63 | 25 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ28xΦ8x0.63 | 28 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ30xΦ8x0.63 | 30 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ32xΦ8x0.63 | 32 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ36xΦ8x0.63 | 36 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ38xΦ8x0.63 | 38 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ40xΦ8x0.63 | 40 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ41xΦ8x0.63 | 41 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ45xΦ8x0.63 | 45 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ50xΦ8x0.63 | 50 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Product Name | Carbide Rotary Blade |
Material | 100% Virgin Tungsten Carbide |
Size | 25 * 8 * 0.63 mm |
Thickness | 0.63 mm |
Hardness | 91.5-93.5 |
Advantage | High and consistent quality,Low levels of waste/scra,Extremely precise cuts and high stability ensure an excellent cutting finish. |
Cutting Material | Fabric,Leather,EVA Foam Vinyl,Faux Fur,Composite Materials,And more.Paper, tile, tobacco, PCB board.aluminum, stainless steel, copper and other metals and so on. |
Specification
Common Size(mm) | Outer diameter(mm) | Inner Diameter(mm) | Thickness(mm) | Angle |
Φ22xΦ8x0.63 | 22 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ25xΦ8x0.63 | 25 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ28xΦ8x0.63 | 28 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ30xΦ8x0.63 | 30 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ32xΦ8x0.63 | 32 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ36xΦ8x0.63 | 36 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ38xΦ8x0.63 | 38 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ40xΦ8x0.63 | 40 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ41xΦ8x0.63 | 41 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ45xΦ8x0.63 | 45 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
Φ50xΦ8x0.63 | 50 | 8/5/6 | 0.63 | 18°/20°/22°/25° |
