10 INCH-100Teeth
XIAPU
Material
Hardened 65 Mn steel for longer life and sharper cutting edge.
Design
100 teeth for general-purpose aluminum cutting. The tooth shape of the aluminum alloy blade is a flat stepped tooth, the blade matrix, alloy cutting head and tooth angle of the aluminum cutting saw, with the cooling process, the cutting surface is smooth without burrs, machining must be fixed by the machine, avoid shock.
TCG grinding provides durable, smooth cutting of non-ferrous metals, aluminum.
Fits
Copatible with most 10-inch circular saws, miters, workbench and table saws.
Our service
Professional service team. OEM product formulation service.
Material
Hardened 65 Mn steel for longer life and sharper cutting edge.
Design
100 teeth for general-purpose aluminum cutting. The tooth shape of the aluminum alloy blade is a flat stepped tooth, the blade matrix, alloy cutting head and tooth angle of the aluminum cutting saw, with the cooling process, the cutting surface is smooth without burrs, machining must be fixed by the machine, avoid shock.
TCG grinding provides durable, smooth cutting of non-ferrous metals, aluminum.
Fits
Copatible with most 10-inch circular saws, miters, workbench and table saws.
Our service
Professional service team. OEM product formulation service.
✦ Laser cutting anti-vibration technology reduces noise and extends cutting life.
✦ Faster, smoother, more reliable cutting feel.
✦ Clean and neat cutting surface with virtually no heat, burrs or sparks.
✦ Aluminum cutting, excellent section effect, long continuous processing time and good wear resistance.
✦ Laser cutting anti-vibration technology reduces noise and extends cutting life.
✦ Faster, smoother, more reliable cutting feel.
✦ Clean and neat cutting surface with virtually no heat, burrs or sparks.
✦ Aluminum cutting, excellent section effect, long continuous processing time and good wear resistance.
Product Name | 10-Inch 100 Teeth TCG Aluminum Circular Saw Blade |

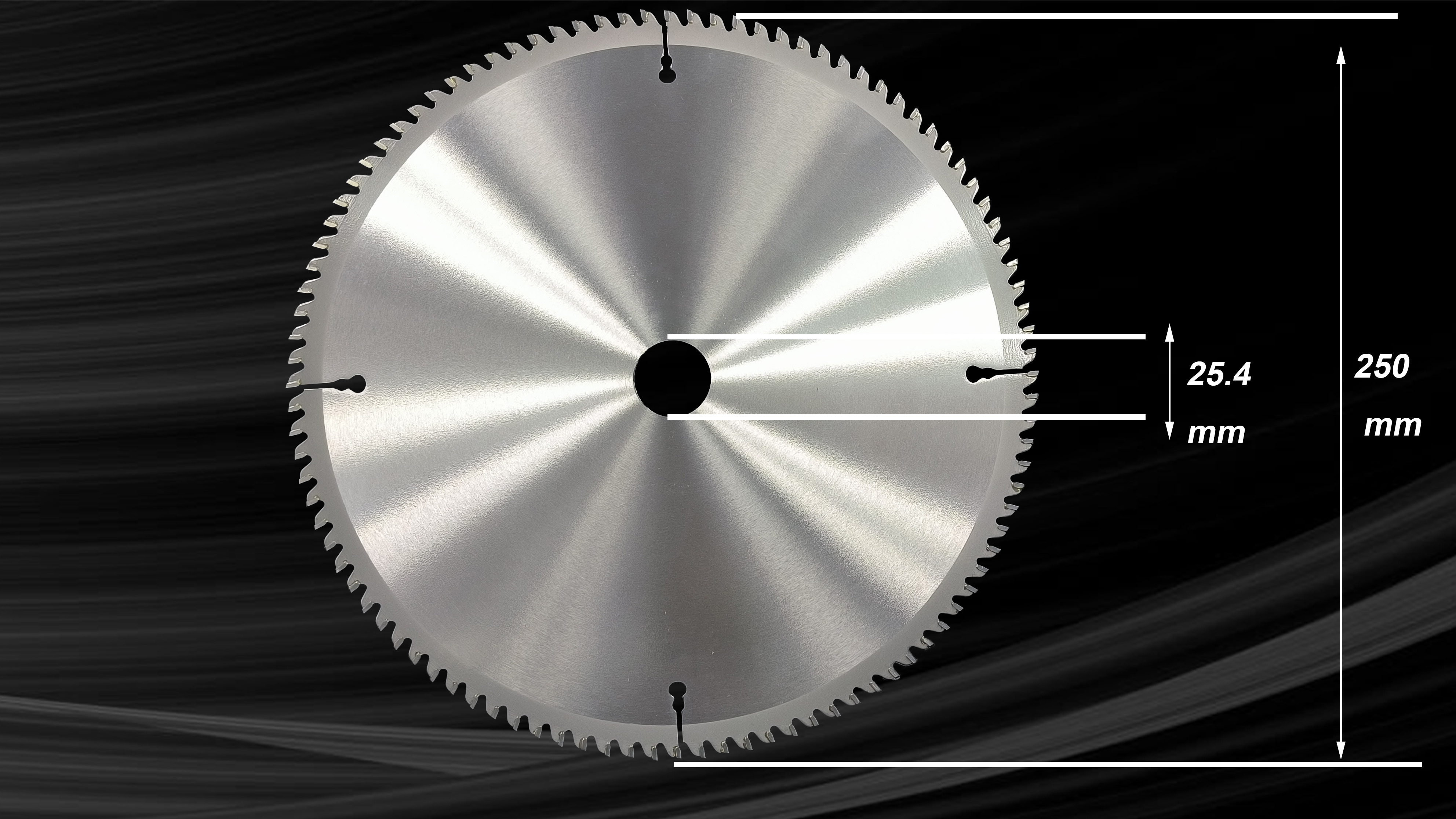

Diameter | 250 mm(10") (Other Diameter are available) |
Hole Diameter | 25 mm/25.4 mm(0.8 inch) |
Teeth | 100 Teeth |
Teeth Material | Tungsten Carbide |
Body Material | 65Mn Steel |

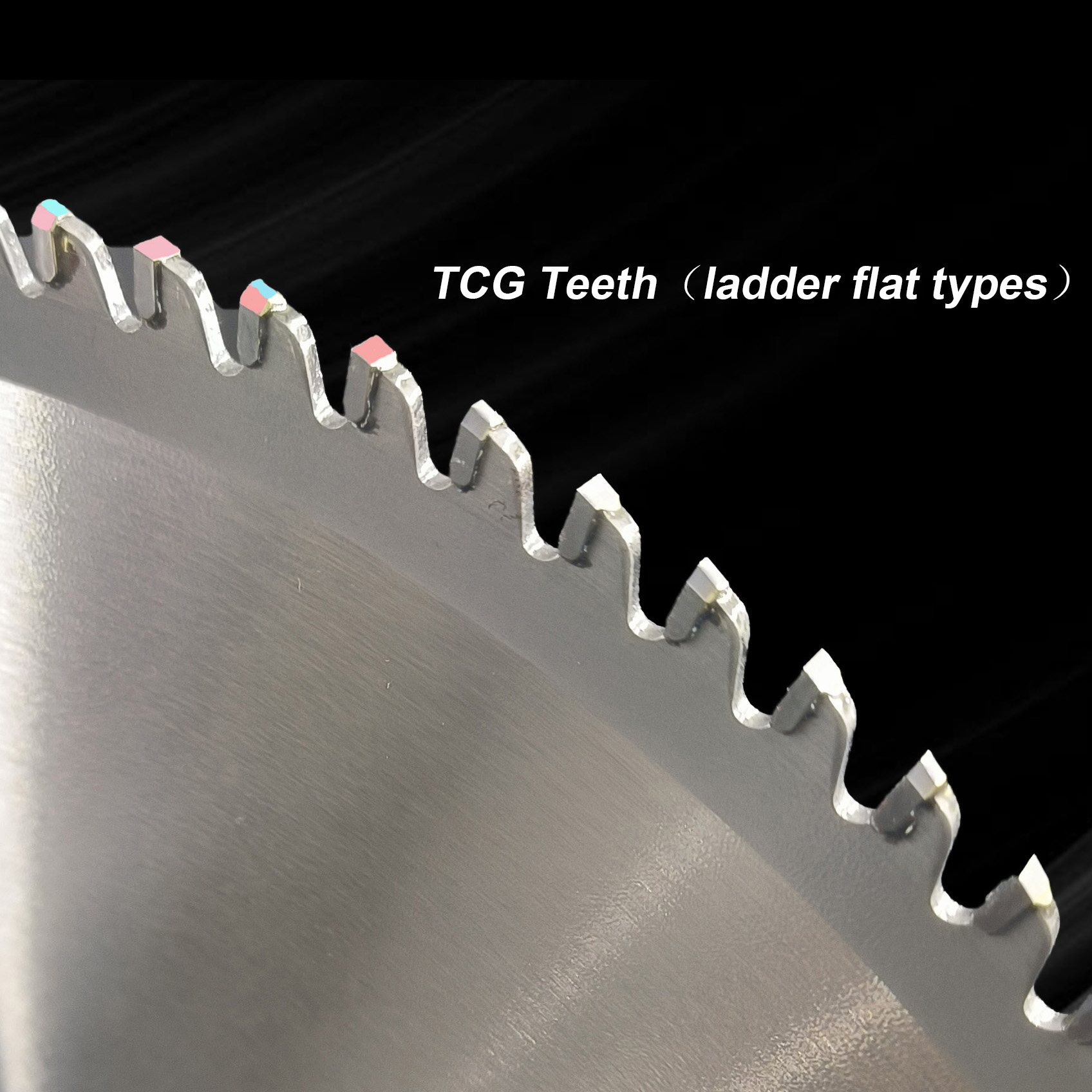

Teeth Type | TCG Teeth-Ladder flat teeth(Other Teeth are available) |
Features | Durable, High Perfomance, Robustness,Excellent Strength. |
Usage | Ideal for cutting applications in aluminum; plastics; copper; brass etc. |
Package | One piece in one PVC double blister, paper box. |
D(mm) | d(mm) | Teeth | B/b(mm) |
160 | 20 | 48 | 2.8/2.0 |
185 | 20 | 48 | 2.8/2.0 |
185 | 20 | 50 | 2.8/2.0 |
200 | 30 | 48 | 2.8/2.2 |
200 | 30 | 64 | 2.8/2.2 |
216 | 30 | 64 | 2.8/2.2 |
235 | 30 | 60 | 2.8/2.2 |
250 | 30 | 60 | 3.2/2.2 |
250 | 30 | 80 | 3.2/2.2 |
250 | 30 | 100 | 3.2/2.2 |
300 | 30 | 72 | 3.2/2.4 |
300 | 30 | 96 | 3.2/2.4 |
350 | 30 | 84 | 3.2/2.6 |
350 | 32 | 108 | 3.2/2.6 |
400 | 30 | 86 | 3.2/2.8 |
400 | 32 | 120 | 3.2/2.8 |
450 | 30 | 108 | 4.0/3.2 |
450 | 30 | 120 | 4.0/3.2 |
500 | 40 | 120 | 4.0/3.2 |
Product Name | 10-Inch 100 Teeth TCG Aluminum Circular Saw Blade |
Diameter | 250 mm(10") (Other Diameter are available) |
Hole Diameter | 25 mm/25.4 mm(0.8 inch) |
Teeth | 100 Teeth |
Teeth Material | Tungsten Carbide |
Body Material | 65Mn Steel |
Teeth Type | TCG Teeth-Ladder flat teeth(Other Teeth are available) |
Features | Durable, High Perfomance, Robustness,Excellent Strength. |
Usage | Ideal for cutting applications in aluminum; plastics; copper; brass etc. |
Package | One piece in one PVC double blister, paper box. |
D(mm) | d(mm) | Teeth | B/b(mm) |
160 | 20 | 48 | 2.8/2.0 |
185 | 20 | 48 | 2.8/2.0 |
185 | 20 | 50 | 2.8/2.0 |
200 | 30 | 48 | 2.8/2.2 |
200 | 30 | 64 | 2.8/2.2 |
216 | 30 | 64 | 2.8/2.2 |
235 | 30 | 60 | 2.8/2.2 |
250 | 30 | 60 | 3.2/2.2 |
250 | 30 | 80 | 3.2/2.2 |
250 | 30 | 100 | 3.2/2.2 |
300 | 30 | 72 | 3.2/2.4 |
300 | 30 | 96 | 3.2/2.4 |
350 | 30 | 84 | 3.2/2.6 |
350 | 32 | 108 | 3.2/2.6 |
400 | 30 | 86 | 3.2/2.8 |
400 | 32 | 120 | 3.2/2.8 |
450 | 30 | 108 | 4.0/3.2 |
450 | 30 | 120 | 4.0/3.2 |
500 | 40 | 120 | 4.0/3.2 |
