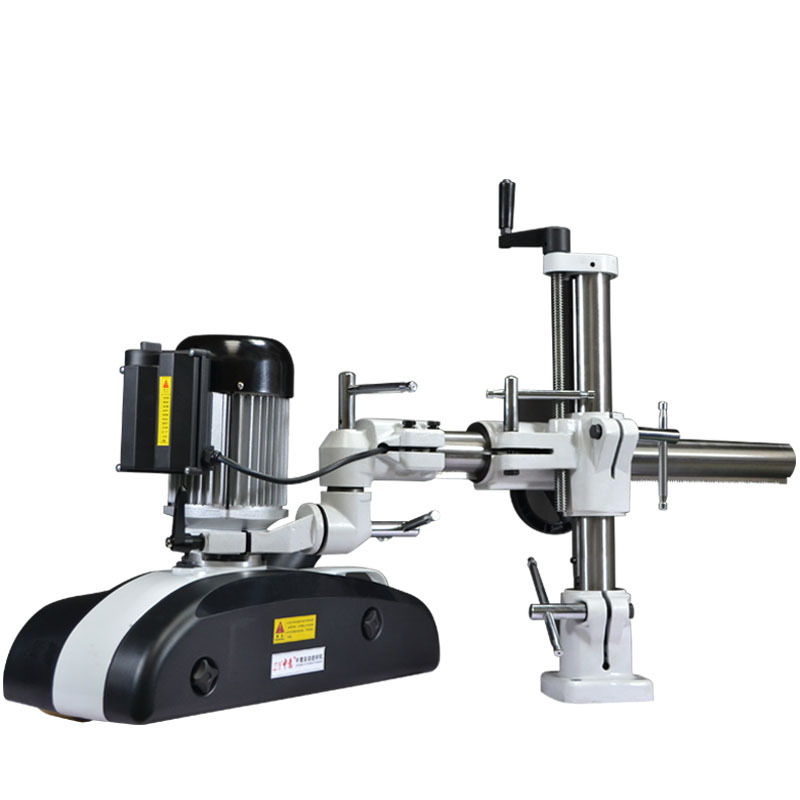

1 HP 4 Rollers 8 Speeds Automatic Feeders Power Feeder For Shapers On Woodworking Table Saw

Sales Models: Wholesale
Min Order:1 PCS
Power Feeder:
Availability:
Quantity:
  • MX48

  • XIAPU

application AX

Power  Feeder 1 HP Table Saw Feeder 4 Rollers 8 Speeds.


Multiple feed speeds


   Our electric feeders for table saws have convenient settings to change the feed speed. The feeder has 8 speeds.


Four durable rollers


   Four non-slip polyethylene rollers. Easy to replace and install if worn or damaged.

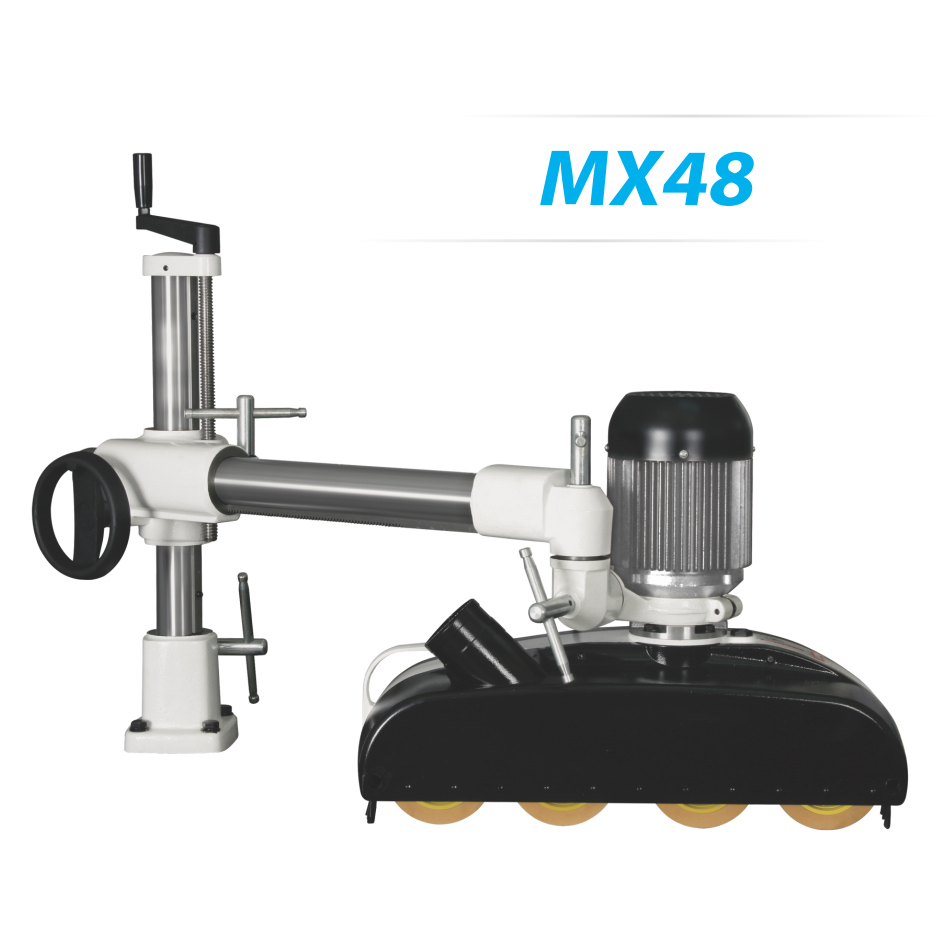

zhu01-f

application mx48-4

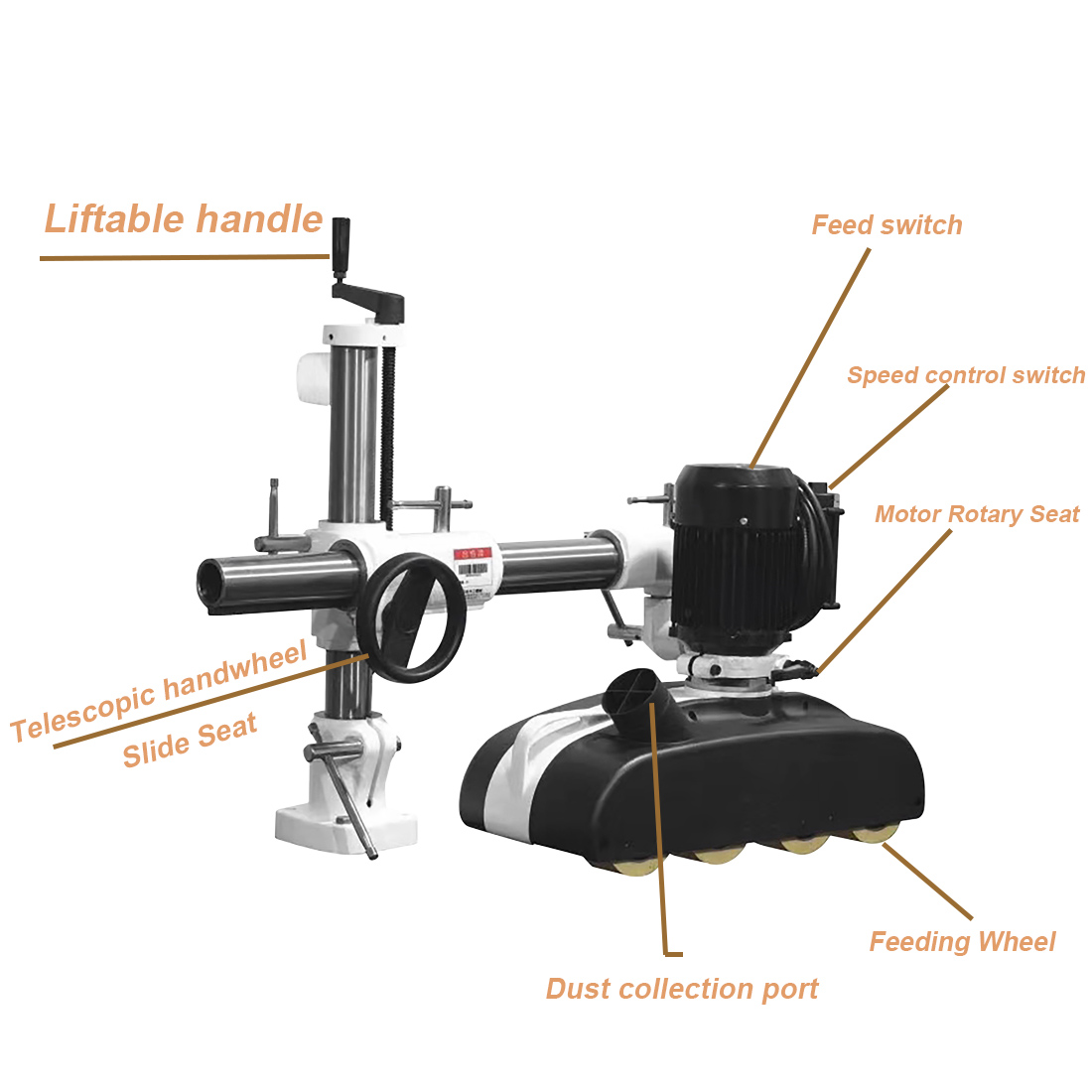

application-1

application mx48jpg


  Attractive Feeder: Our electric feeders are equipped with a 1 HP, 380 volt single-phase motor that allows easy, precise and safe shredding of long or wide pieces of wood.

  Cast aluminium construction: Cast aluminum and cast iron are the main materials used in our feeders. In addition to good corrosion resistance, our products have high strength and excellent rigidity.

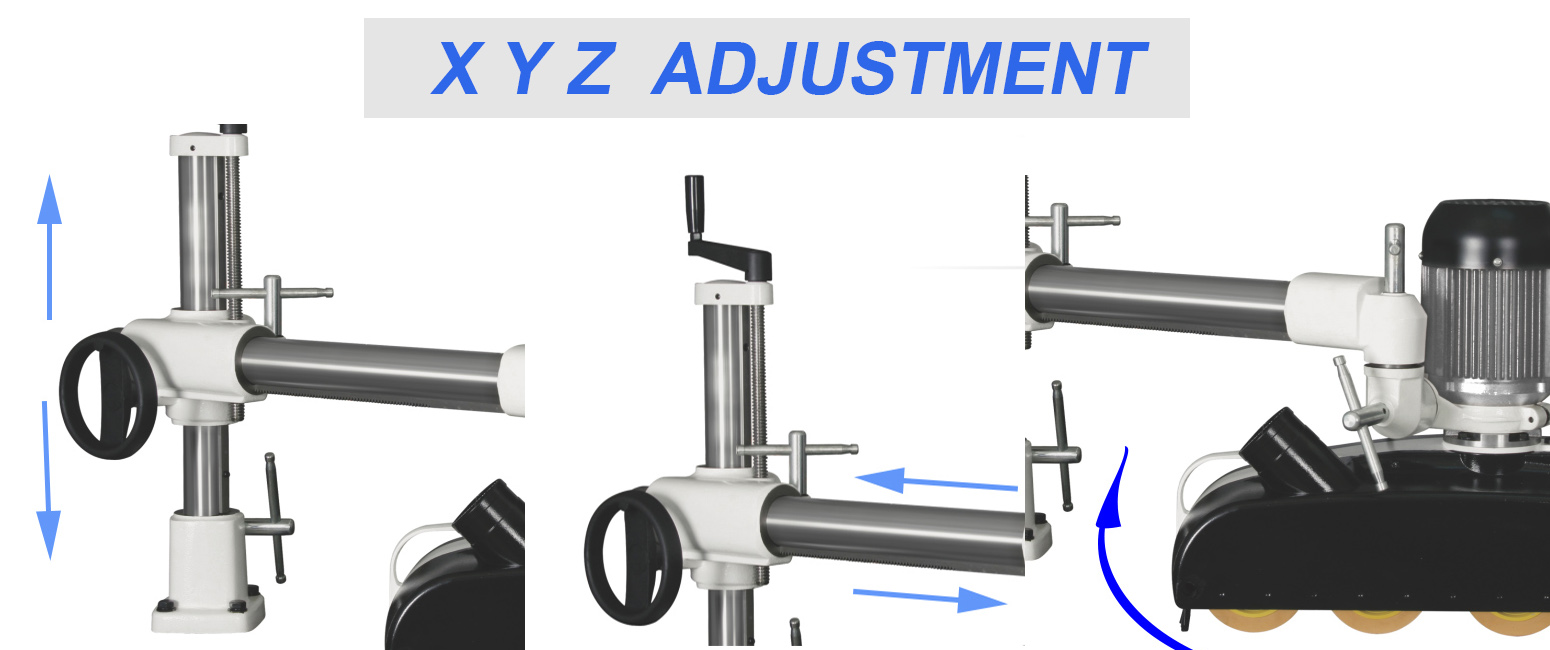

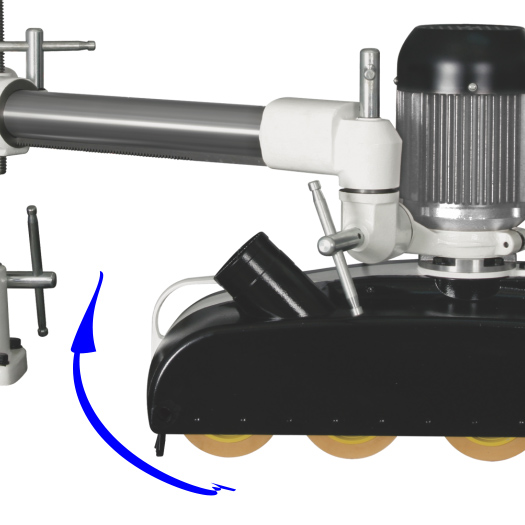

   X-Y-Z axis adjustment: Universal joints allow the feeder's path and height to be adapted to a wide range of workpiece sizes.

   Speed control: Our wood feeders support eight feed speeds and forward or reverse switches.

   Advanced Roller Design: The four polyethylene rollers on our electric wood feeders are specially designed with a 3/4-inch overhang for workpieces of varying thicknesses, ensuring constant pressure on the workpiece throughout the process.


Model

4 Rollers 8 Speed Power Feeder

Feeding Speeds

(50Hz)3.5/5/7/10/12.5/16/25/32

M/min.

(60HZ) 3.5/5/7/10/12/17/26/34

M/min.

Motor

1 HP

Rated voltage

380 V

Maximum Machining Length

490 mm

Maximum Machining Width

800 mm

Maximum Lifting Distance

223 mm

Maximum Lateral Distance

428 mm

Roller Size

Φ120 x W60mm x 4

Roller Suspension

25 mm

Net Weight(Feeder+Stand)

27 + 35 Kgs

Gross Weight(Feeder+Stand)

29 + 37 Kgs

Carton for Body(Feeder)

740 x 315 x 540 mm

Carton for Stand(Stand)

750 x 315 x 290 mm

Capacity of 20’Container

132 Sets

Control Method

Positive, reverse, fast and slow variable polarity speed regulation

Usage

Vertical Shaft Feeder,Timber Push Presses.
